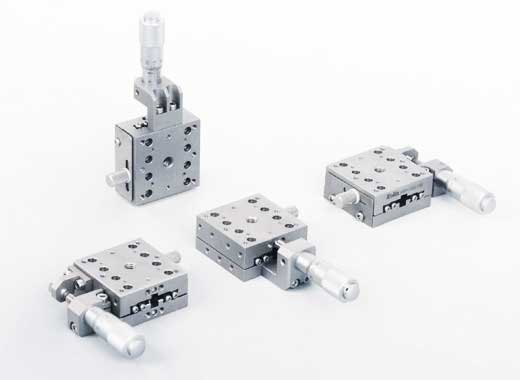

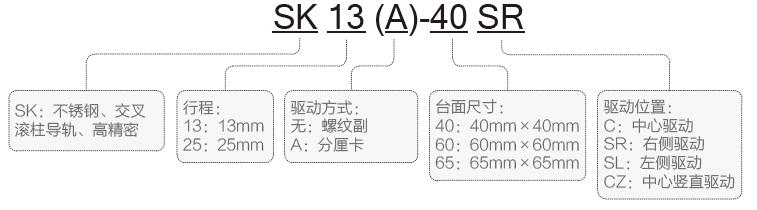

| 型号 | SK13(A)-40(xx) | SK13(A)-60(xx) | SK25(A)-65(xx) |
| 行程(mm) | 13 | 13 | 25 |
| 台面尺寸(mm) | 40×40 | 60×60 | 65×65 |
| 厚度(mm) | 19.5 | 20 | 23 |
| 导轨 | 交叉滚柱导轨 | ||
| 驱动方式 | 螺纹副(带A为分厘卡) | ||
| 驱动位置 | C：中心驱动；SR：右侧驱动；SL：左侧驱动；CZ：中心竖直驱动 | ||
| 主体材料及表面处理 | 不锈钢，喷砂钝化 | ||
| 灵敏度(µm) | ≤2 | ||
| 分厘卡*小读数(mm) | 0.01 | ||
| 直线度(µm) | ≤3 | ||
| 水平负载(Kg) | 5 | 6 | 7 |
| 竖直负载(Kg) | 1.5 | 2 | 2.5 |
| 自重(Kg) | 0.28 | 0.5 | 0.86 |
|
型号 |
PDF图纸 |
3D图纸 |
|---|---|---|
|
SK13-40C |
|
|
|
SK13A-40C |
|
|
|
SK13-40CZ |
|
|
|
SK13A-40CZ |
|
|
|
SK13-40SR |
|
|
|
SK13A-40SR |
|
|
|
SK13-40SL |
|
|
|
SK13A-40SL |
|
|
|
SK13-60C |
|
|
|
SK13A-60C |
|
|
|
SK13-60CZ |
|
|
|
SK13A-60CZ |
|
|
|
SK13-60SR |
|
|
|
SK13A-60SR |
|
|
|
SK13-60SL |
|
|
|
SK13A-60SL |
|
|
|
SK25-65C |
|
|
|
SK25A-65C |
|
|
|
SK25-65CZ |
|
|
|
SK25A-65CZ |
|
|
|
SK25-65SR |
|
|
|
SK25A-65SR |
|
|
|
SK25-65SL |
|
|
|
SK25A-65SL |
|
|
