Model
|
Gloria-SC-P |
|
Cut-in wavelength1) |
420nm |
|
Total power
|
7.5W |
|
Total visible power
(350-850 nm)
|
2.2W |
|

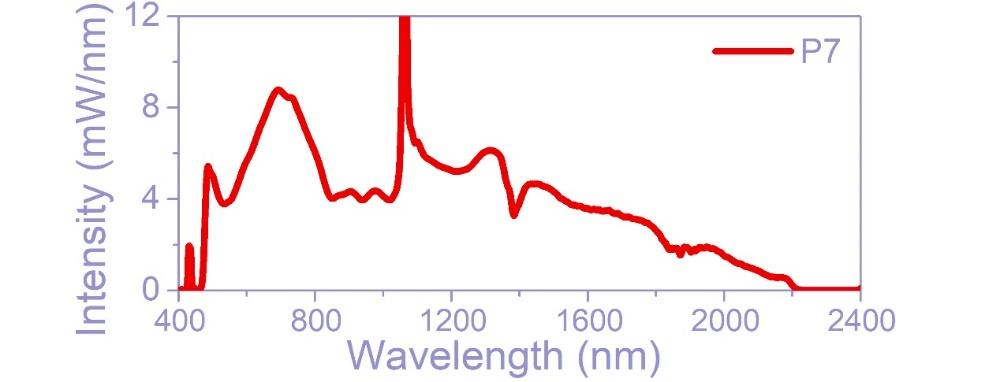

Spectral range
|
420-2200nm |
|
Power stability
|
<0.5% (RMS)
|
|
Variable repetition rate
|
160 kHz-80 MHz
|
|
Beam quality
|
M2<1.1 |
|
Polarization
|
Random
|
|
Model
|
Gloria-SC-P |
|
Length of output fiber
|
1.5m |
|
Synchronous output signal
|
BNC; TTL voltage level
|
|
Operation Voltage
|
100-240 V; 50/60 Hz
|
|
Power consumption
|
< 150 W
|
|
Dimension((WHL))
|
600×400×200 mm |
|
Weight
|
<25 kg
|
