Finder Insight Pro Raman Spectroscopy

Application

■ Biomedicine

■ Polymer Chemistry

■ Environmental Science

■ Material Science

■ Geological Science

■ Cultural relic identification and restoration

■ Criminal investigation and drug identification


Characteristic

■ Small desktop Raman microscope with scientific research performance;

■ The spatial optical path is directly coupled to maximize the light collection efficiency;

■ Integrated built-in monitoring light path, visual sample selection and measurement, and automatic moving in and out of the monitoring light path;

■ The vertical light path is suitable for almost all sample shapes;

■ Optional horizontal light path accessories, suitable for measuring liquid glass bottles/tubes;

■ Optional 96-well test plate, automatic measurement operation;

■ The software contains multiple collection functions: single spectrum collection, continuous collection, interval collection, etc.;

■ The software contains a variety of data processing functions: fitting, smoothing, peak finding and peak area calculation, etc.;

■ The software can be optionally equipped with a database for comparison and measurement of unknown samples

Test Example:

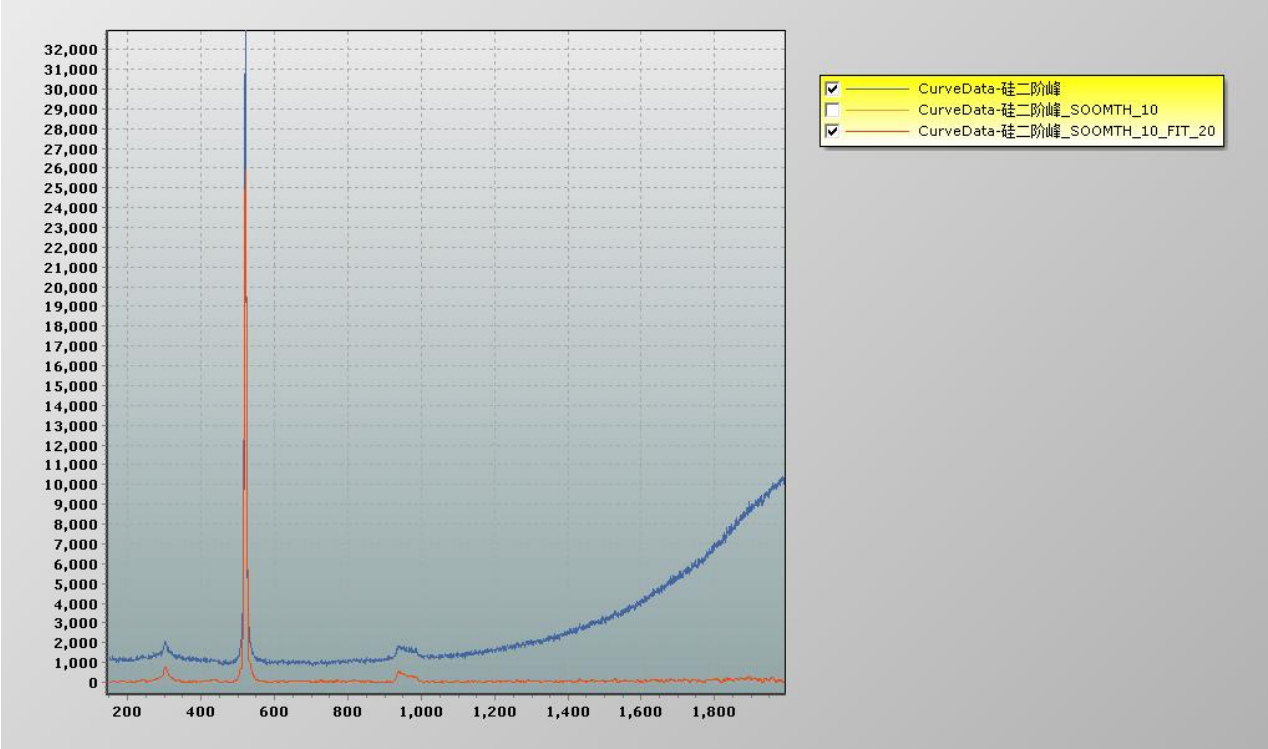

A. FI785-Pro single crystal silicon Raman test

Among them: blue is the original Raman spectrum,

Red is the smoothed and fitted Raman spectrum

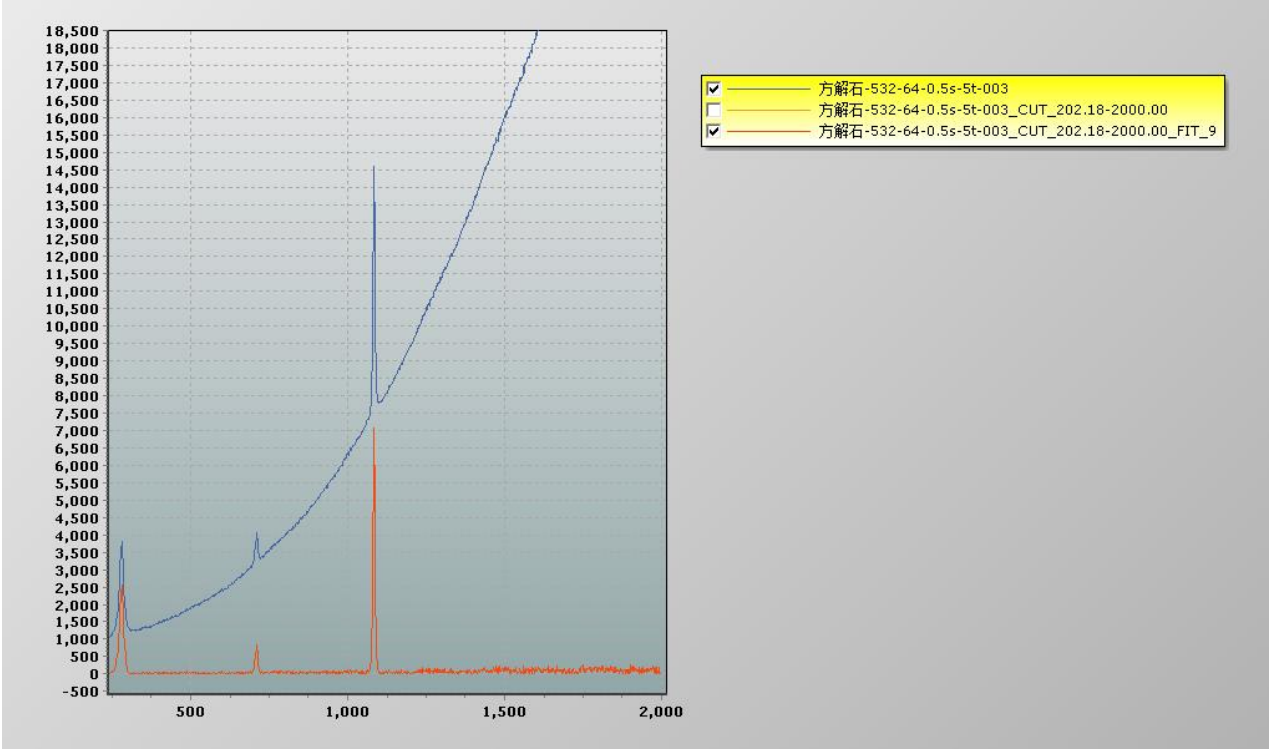

B. FI532-Pro Calcite Raman Spectroscopy Test

Among them: blue is the original Raman spectrum, Red is the Raman spectrum after interception and fitting

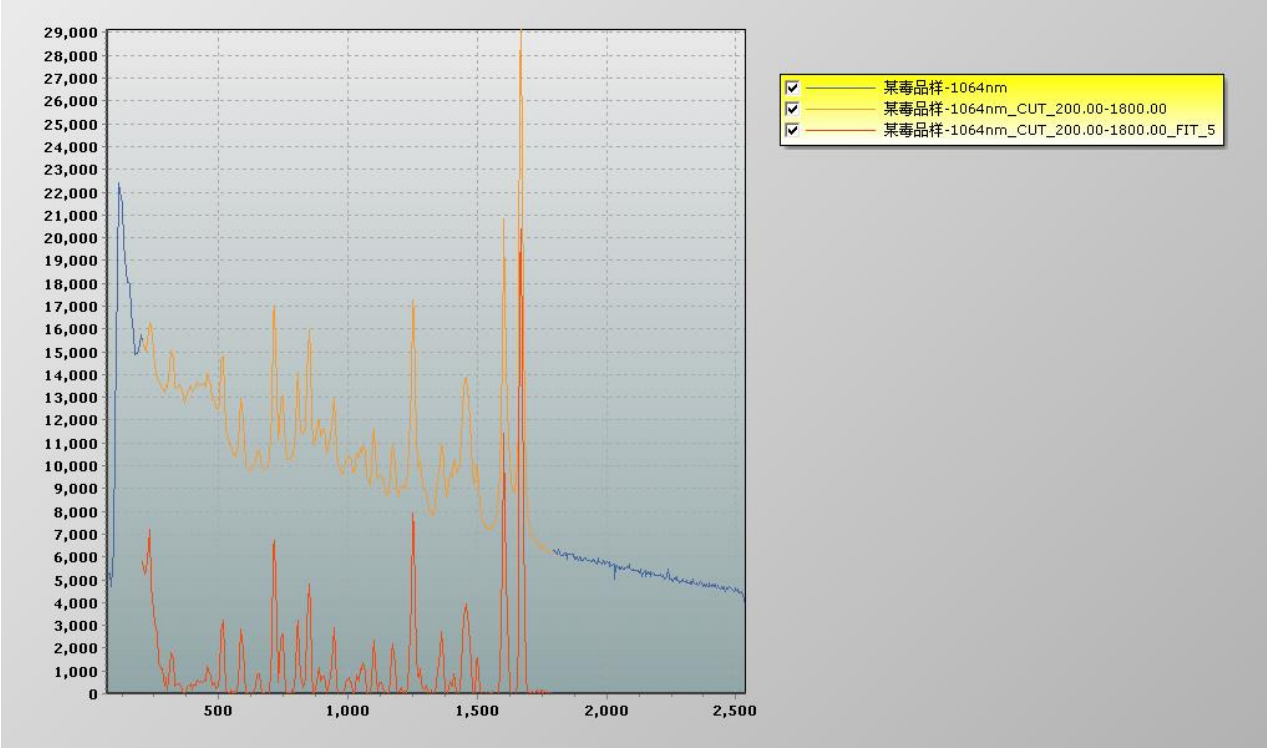

C. FI1064-Pro Raman spectrum test of a drug sample

Among them: blue is the original Raman spectrum, Red is the Raman spectrum after interception and fitting

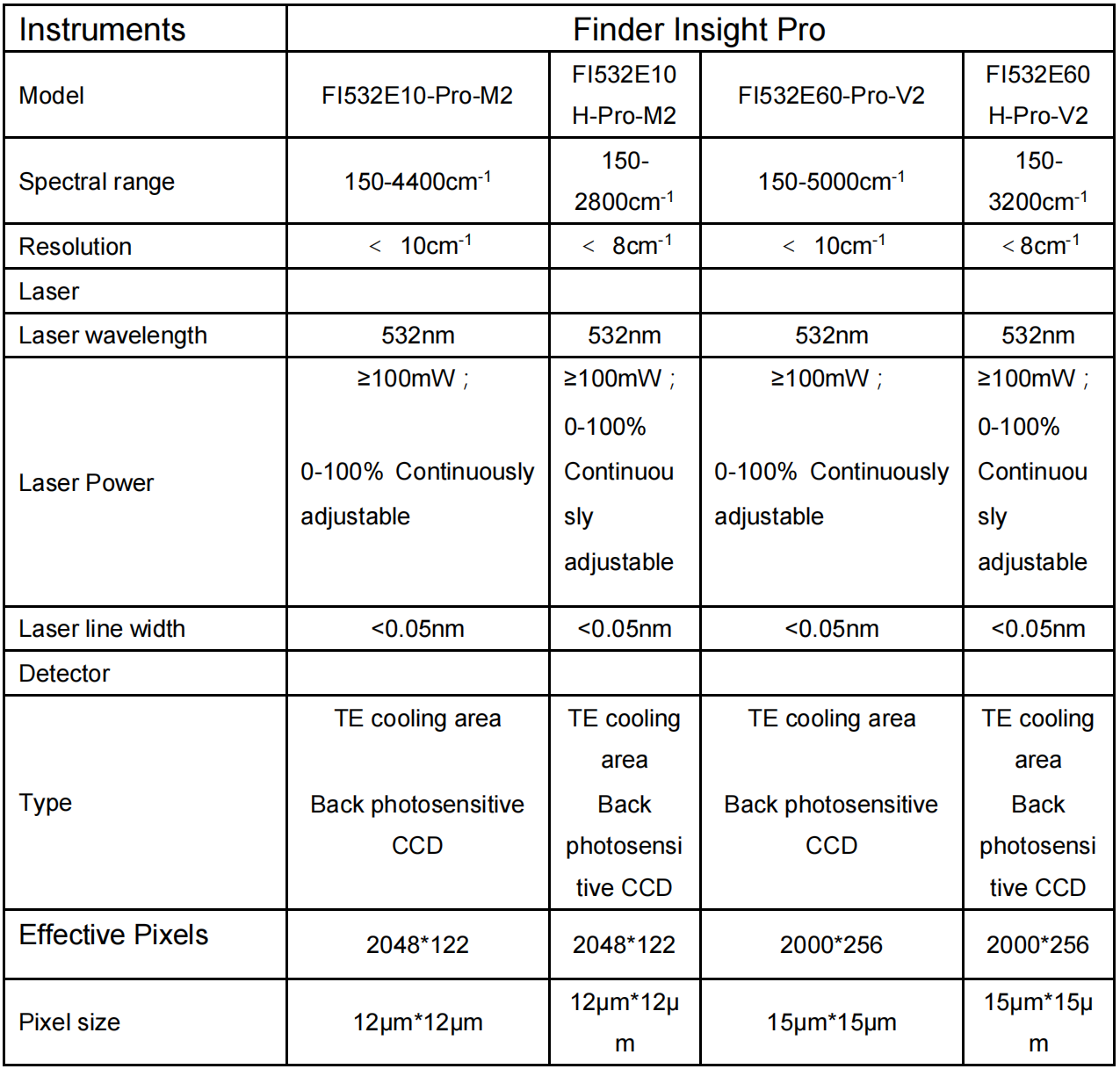

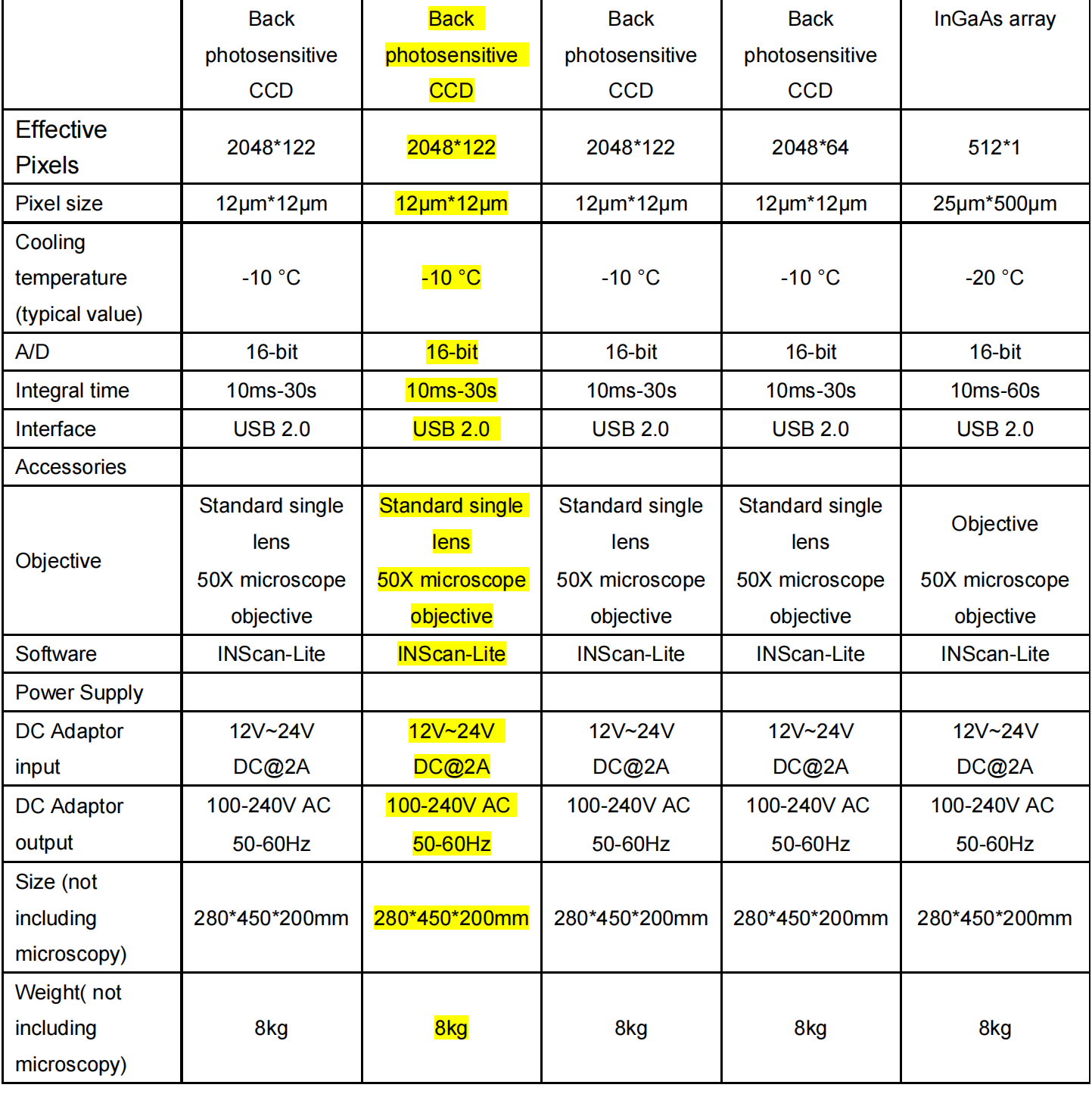

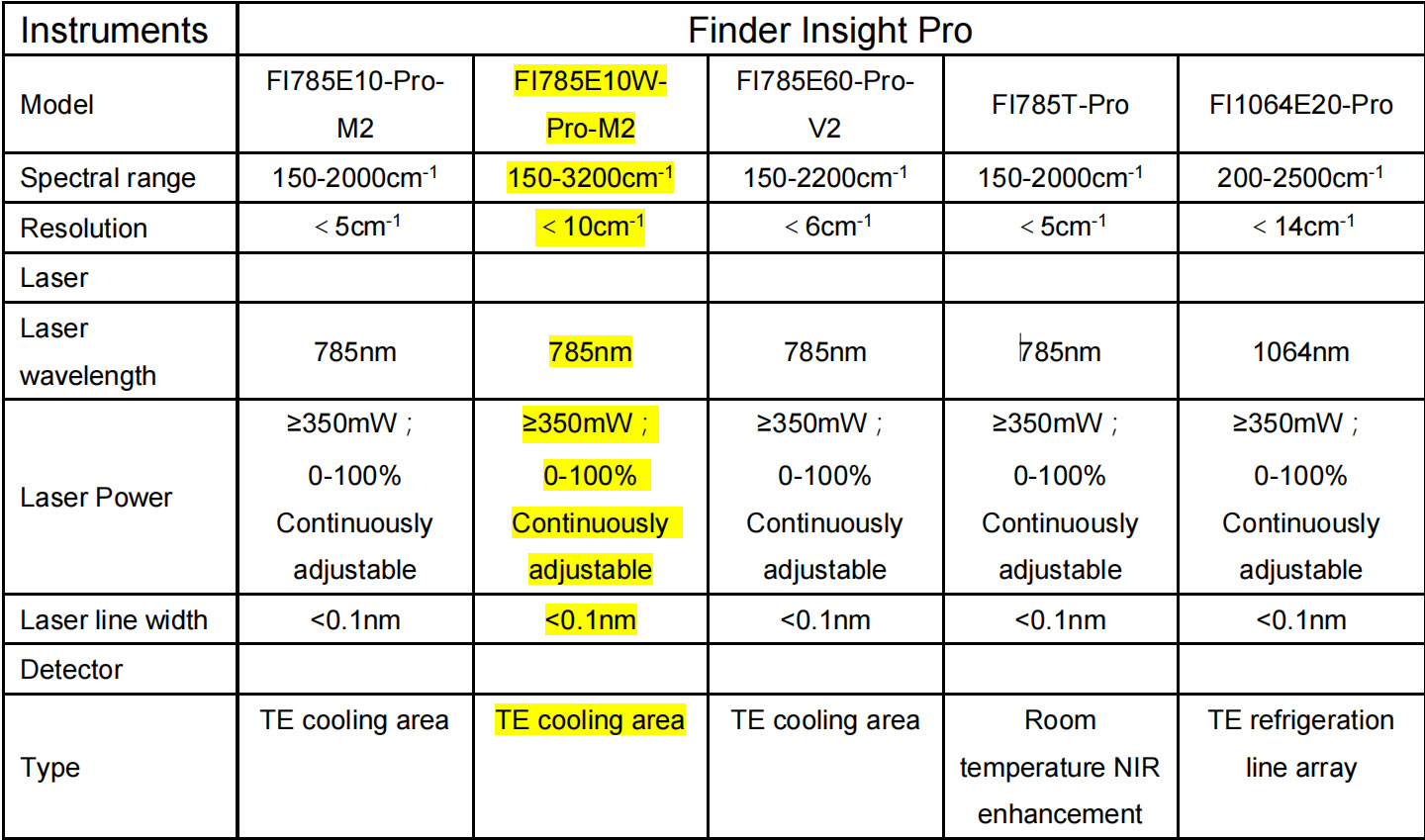

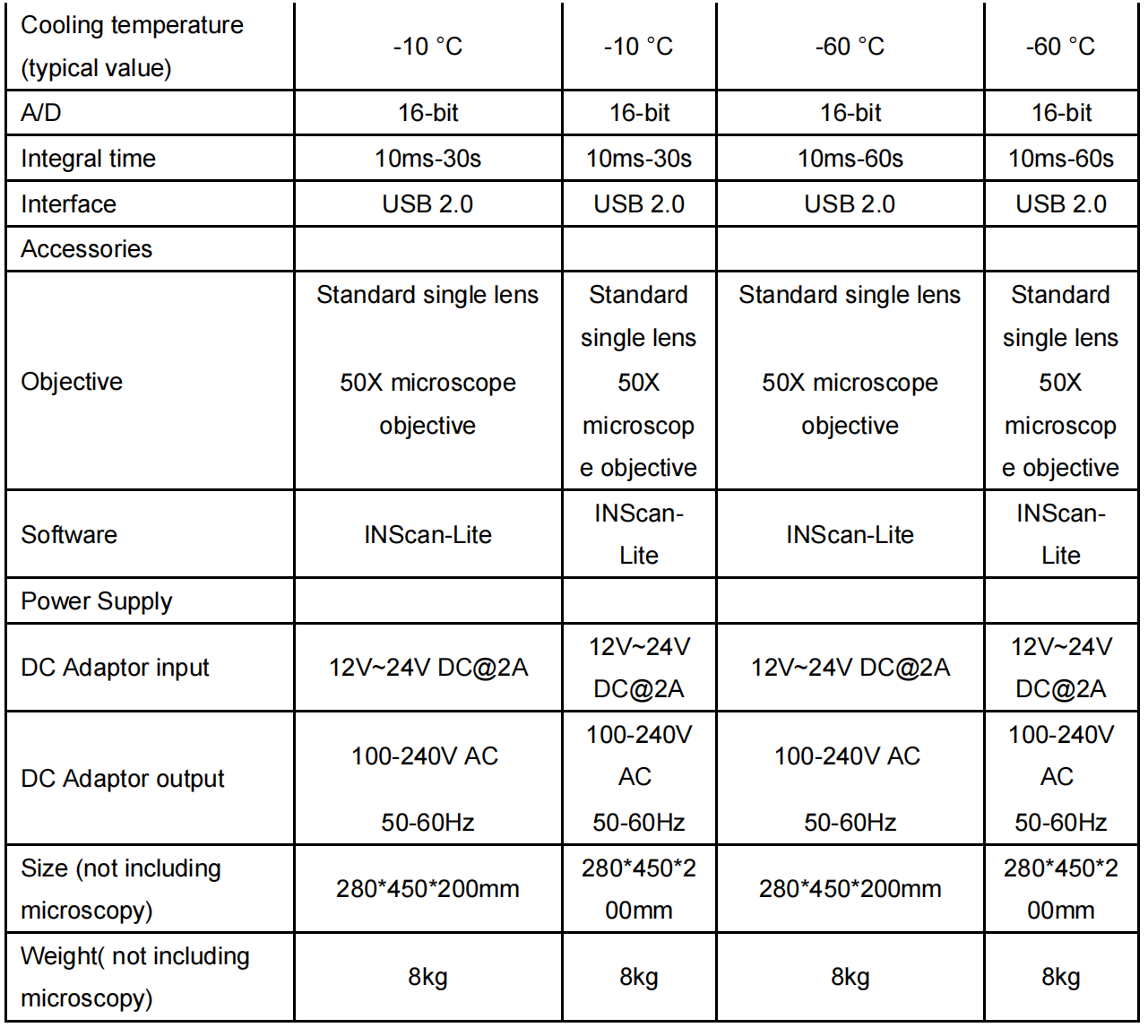

Technical Information
