Low Temperature · Piezoelectric Rotator16 Motion Stage

• Compact design, dimensions: Dia 16*15.6 mm
• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
• High loads & high torque: 100 g & 0.4 Ncm
• Travel range: 360 ° endless
• Closed-loop control with position sensing up to 10 m° resolution


Inquiry
Download
Details
“16mm Series” — Rotator16 (closed-loop)
Low Temperature · Piezoelectric Motion- Rotator Series
Smallest rotary stage with closed-loop control

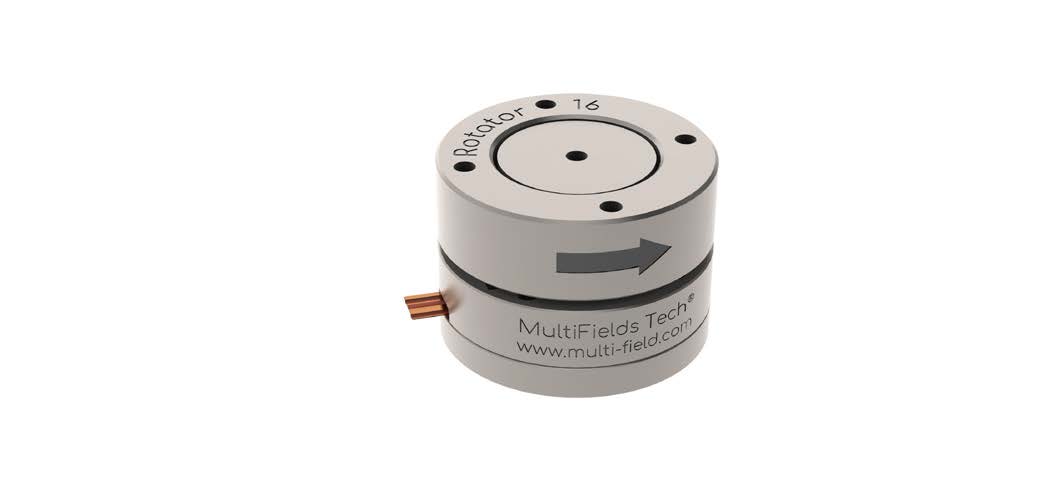

Low Temperature · Piezoelectric Rotator16 Motion Stage

Features
• Compact design, dimensions: Dia 16*15.6 mm
• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
• High loads & high torque: 100 g & 0.4 Ncm
• Travel range: 360 ° endless
• Closed-loop control with position sensing up to 10 m° resolution

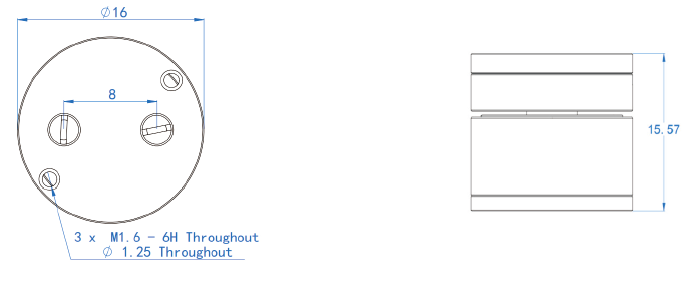

Dimension drawing
Rotator16, Specification
*All data below is measured with 50 ohm wires. Though there is no requirement on wires’ conductance, we recommend resistance below 50 ohm.



Optional Versions ⇨

.HV (default)

.ULT

.UHV

.ULT.UHV



.HV  version, default product;

.ULT version, used at He3 or dilution cryogenics systems

.UHV version, compatible  with 2E-11 mbar

1     Footprint × hight

Dia 16 mm × 15.6 mm

2    Weight

10 g

Working Environment &



3    Work environment

Temperature range: 1.4 ~ 400 K Vacuum: 2e-7 mbar

Max. Magnetic field: 18 Tesla



4    Option1 - 30 mK







5    Option2 - 2e-11 mbar





Materials



7    Mainbody

Pure Ti

BeCu

Pure Ti

BeCu

8    Wires

Phosphor Bronze Twisted Paired Wires, 20cm

9    Pin materials

Polyster (glass fiber filled), BeCu

Peek, BeCu

10   Pins number

5 pins

Motion

11   Travel range

360 ° endless

12   Max. Velocity @300 K

~ 10 °/s

13   Drive voltage

Max. 200 V

14   Max. Load

100 g

15   Dynamic torque

0.4 Ncm

Sensor (closed loop)

16   Position encoder

Resistive Sensor

17   Encoder range

320 °

18   Sensor resolution

10 m°

19   Repeatibility

~ 50 m°
