Linear 55-x-Pro

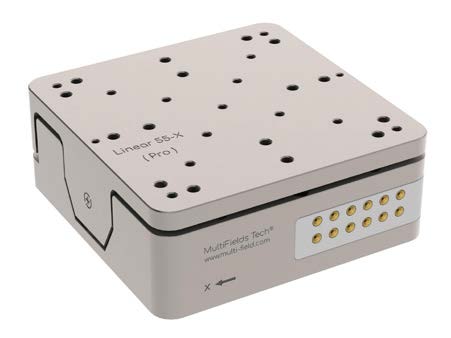

Low Temperature · Piezoelectric Linear 55-x-Pro Series Motion Stage

• Compact design, dimensions: 55*55*21.2 mm
• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
• High loads & high thrusts: 500 g & 5 N
• Long travel range: 25 mm
Inquiry
Download
Details
Low Temperature · Piezoelectric Motion- Linear Series
Best motion linear stage with closed-loop control
Features
• Compact design, dimensions: 55*55*21.2 mm
• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
• High loads & high thrusts: 500 g & 5 N
• Long travel range: 25 mm
• Closed-loop control with position sensing up to 0.1 um resolution

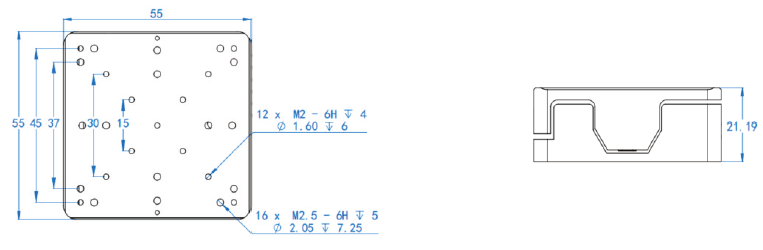

Dimension drawing
Low Temperature · Piezoelectric Linear 55-x-Pro Series Motion Stage
Specification
*All data below is measured with 50 ohm wires. Though there is no requirement on wires’ conductance, we recommend resistance below 50 ohm.




Optional Versions ⇨

.HV (default)

.ULT

.UHV

.ULT.UHV



.HV  version, default product;

.ULT version, used at He3 or dilution cryogenics systems

.UHV version, compatible  with 2E-11 mbar

1     Footprint × hight

55 × 55 mm × 21.2 mm

2    Weight

200 g

Working Environment &



3    Work environment

Temperature range: 1.4 ~ 400 K Vacuum: 2e-7 mbar

Max. Magnetic field: 18 Tesla



4    Option1 - 30 mK







5    Option2 - 2e-11 mbar





Materials



7    Mainbody

Pure Ti

BeCu

Pure Ti

BeCu

8    Wires

Phosphor Bronze Twisted Paired Wires, 20cm

9    Pin materials

Polyster (glass fiber filled), BeCu

Peek, BeCu

10   Pins number

Drive - 7 pins, Sensor - 3 pins

Motion

11   Travel range

25 mm

12   Max. Velocity @300 K

~ 2 mm/s

13   Drive voltage

Max. 200 V

14   Max. Load

500 g

15   Dynamic force

3 N

Sensor (closed loop)

16   Position encoder

Resistive Sensor

17   Encoder range

25 mm

18   Sensor resolution

~ 150 nm

19   Repeatibility

1 - 2 um
