NPM series Prism Kinematic Mount_Zolix Instruments CO.,LTD

Details

Features:

• High-quality materials: The main body is made of high-quality aluminium alloy,and the surface treated by black anodic oxidation.

• Advanced structure：

① 2D tilt and 1D rotation adjustment with side thumb drive.

② Hold the prism by an elastic mechanism with adjustable height

③ Cross Line on the plateform , more easy to position the optics

• High sensitivity:3pcs 0.25mm fine thread makes the 3D adjustment precise.

Selection Table:

Model		NPM-30	NPM-60
Max Load Height(mm)		30	60
Plate Form Sizemm)		φ62	φ70
Adjustment Angle Range	Tilt(°)	±3
	Tilt(°)	±3
	Rotaiton(°)	±5	Raw adjust 360, fine tuning +/-5
Max Load Height(mm)		MAX30	MAX60
One Round of Screw Drive vs Angle Adjusted (°)	Tilt(°)	≈0.76	≈0.39
	Tilt(°)	≈0.76	≈0.45
	Rotaiton(°)	≈0.82	≈0.57
Main Body Material and Treatment		aluminium alloy, surface treated by black anodic oxidation.
Overall Height(mm)		65	109
Mounting Hole		M6	M6，4 个 M4
Net Weight (g)		180	475

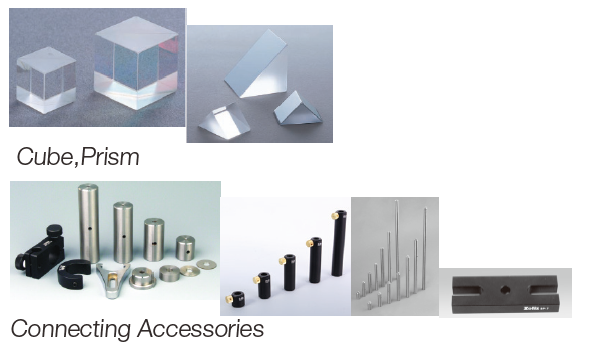

Related Products:
