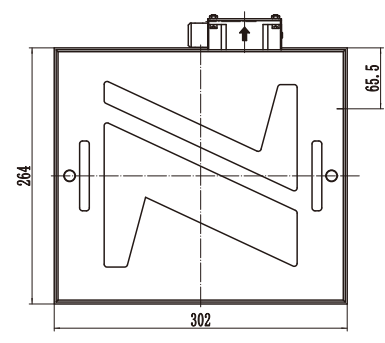

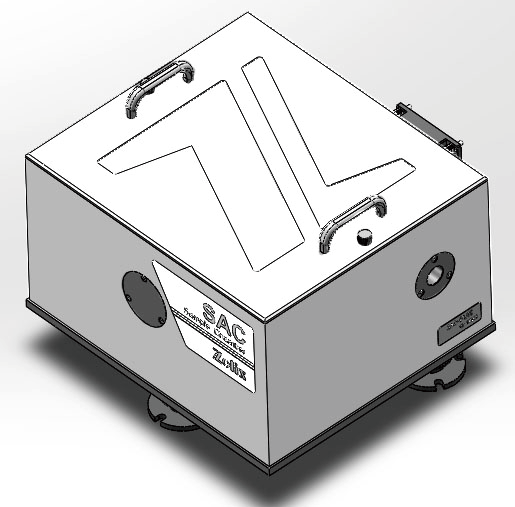

SAC-RF transmission and reflection sample chamber




Features

■ The chamber is dedicated to transmission, reflection, and absorption spectra measurement, using reflective optical path to eliminate the effects of chromatic aberration;

■ SAC-RF03 is configured with aluminum coated reflect mirror, its optical path is parallel, suited for UV-VIS-NIR wavelength spectrum measurement;

■ SAC-RF04 is configured with gold coated reflect mirror, its optical path is parallel, suited for infrared wavelength spectrum measurement;

■ SAC-RF05 is configured with silver coated reflect mirror, its optical path is parallel, suited for VIS-NIR wavelength spectrum measurement;

■ Standard configuration contains a cuvette, a SAC-SH13 cuvette sample holder, a SACSH14 transmission sample holder;

■ 25/25.4 mm filters can be installed in the collection path to avoid the noise interference;

■ Only available for Omni-λ series spectrometer with manual slit.

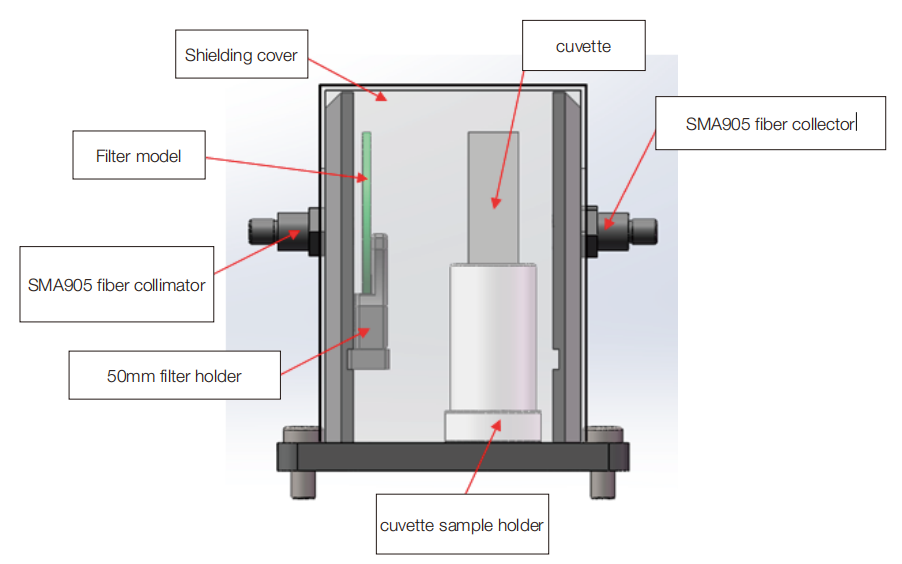

SAC-FT transmission and absorption sample chamber

Features

■ The chamber is dedicated to transmission, and absorption spectra measurement, with fiber coupling method;

■ The fiber interface is SMA905;

■ The optical path is designed to be parallel, suited for UV-VIS-NIR wavelength measurement;

■ The standard filter holder is compatible with 0.5”, 1”, and 2” square or circle filter, the maximum thickness can be 4 mm;

■ Contain a cuvette for liquid measurement;

■ The fiber need to be prepared according to the requirement, so the chamber don’t contain fiber.

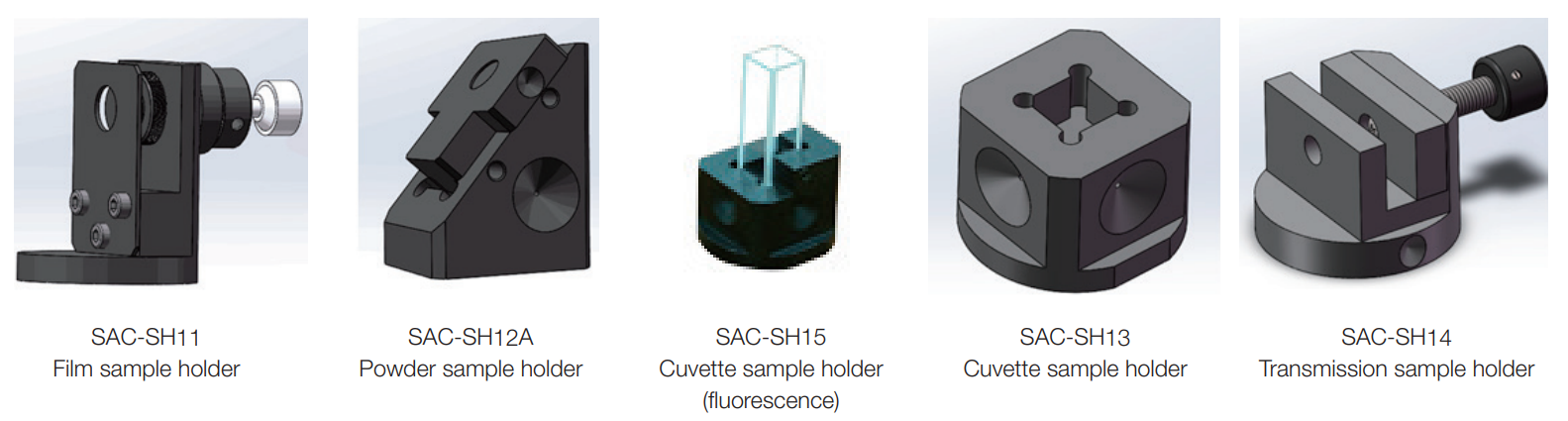

Sample accessories
