SKR series Stainless Steel High Precision Rotation Stages

SKR series precision rotation stages are ideal for fine-tuning angular orientation in 10°range when rotating it to an approximate angle by course-tuning. The table top contains many standard screw holes to fix various components in laboratory applications. Threaded holes on the edge are used for mounting, especially useful for vertical mounting. These stages feature ball bearing or cross roller ring for smooth motion and higher load capacity. Driven by micrometer, it features high sensitivity.


Inquiry
Download
Details
Features:
• Sensitivity to 0.68 arc minutes
• Ball bearing or cross roller ring for smooth motion and higher load capacity

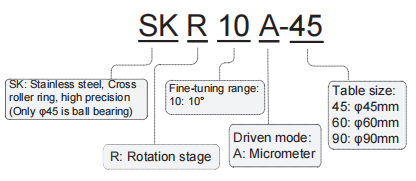

Naming Rules:

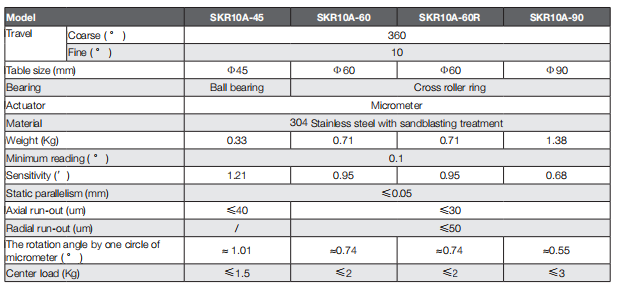

Selection Table:

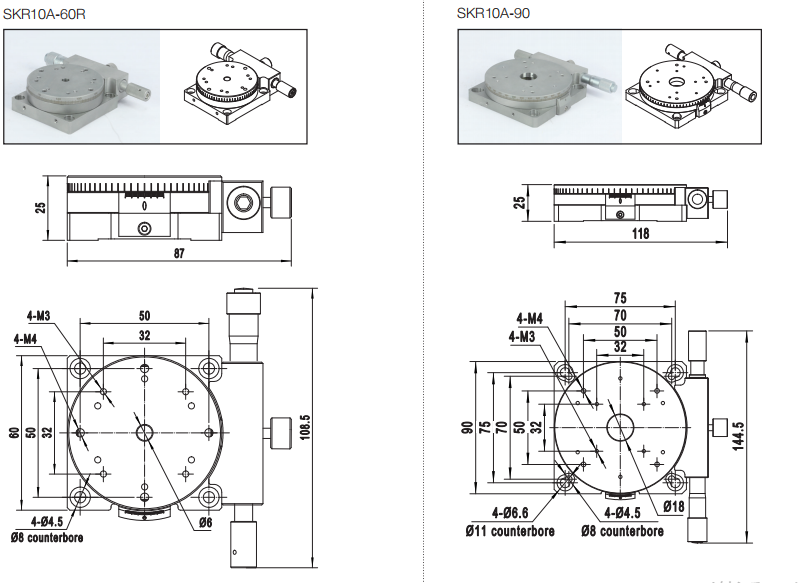

Dimensions:
