Home > Products > Manual Positioners > Fiber Alignment Stages > NFP-x561 series High Precision Fiber Alignment Stages

NFP-GON10，NFP-2561(L)，NFP-3561(L) ，NFP-5561(L)，NFP-6561(L)

NFP-x561 series High Precision Fiber Alignment Stages

Inquiry
Download
Details

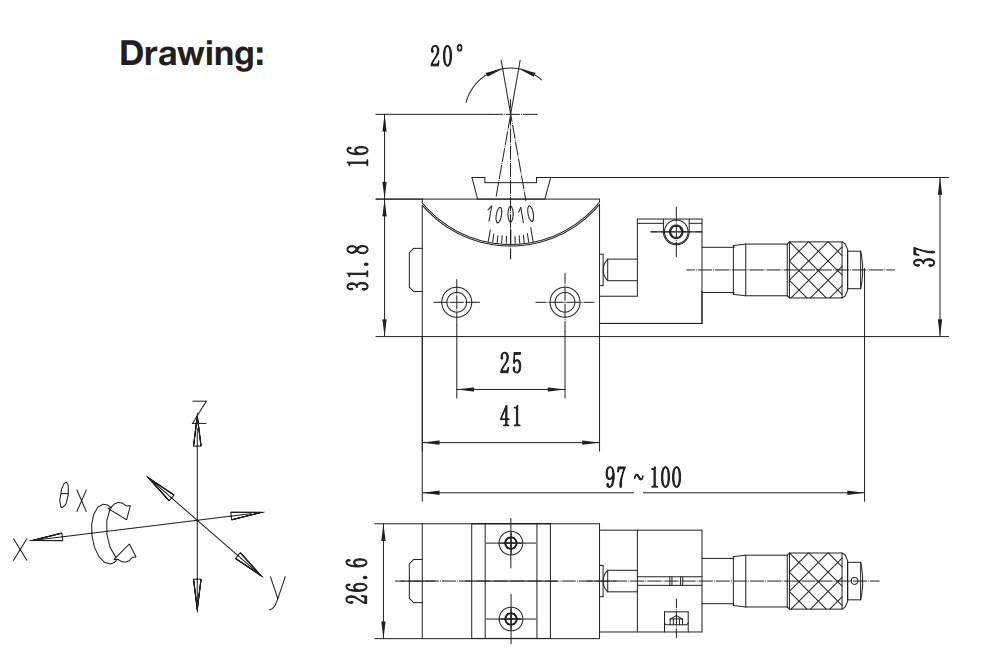

NFP-GON10 High Precision Goniometer Stage



Specification:
● Rotation Angle:θx: ±10°
● Sensitivity: 6”


NFP-2561T(L) High Precision Tilt Stage



Specification:
● θy: -2°～4°
● θz: -4°～4°

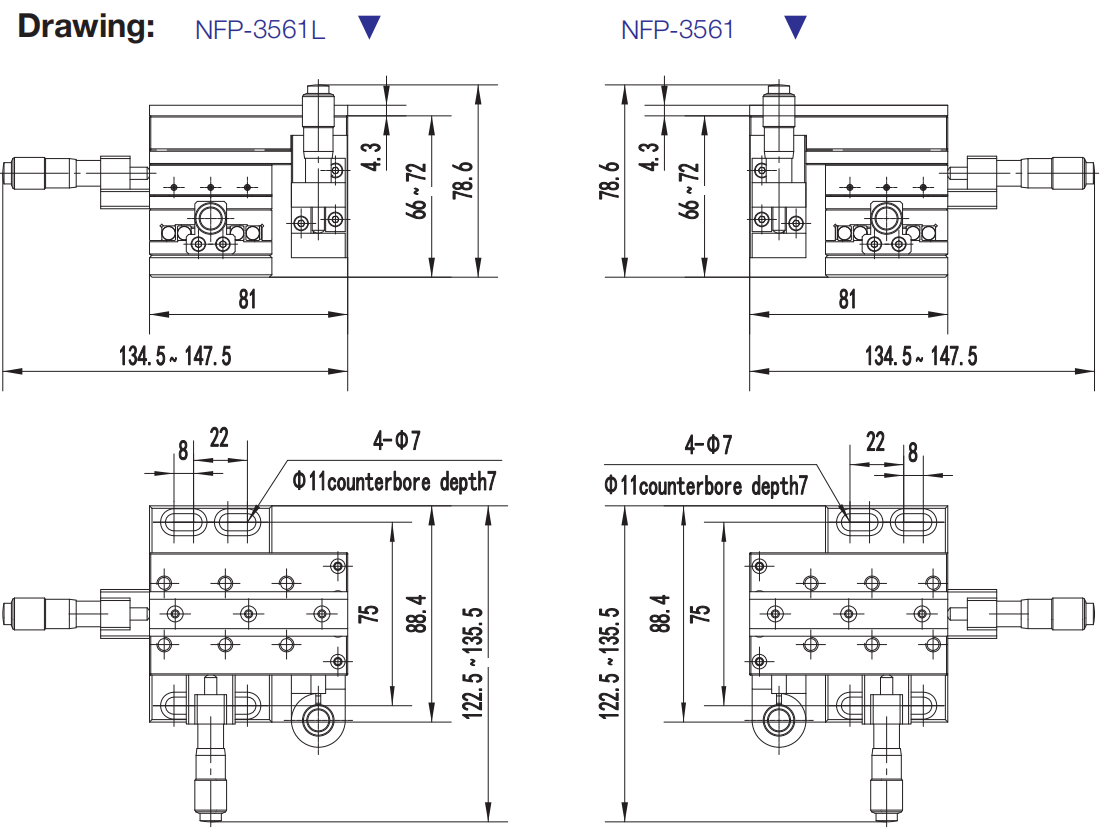

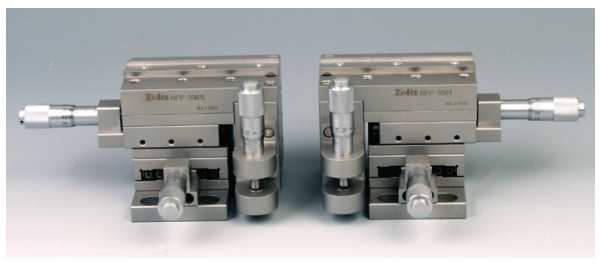

NFP-3561(L) High Precision Fiber Alignment Stage



Specification:

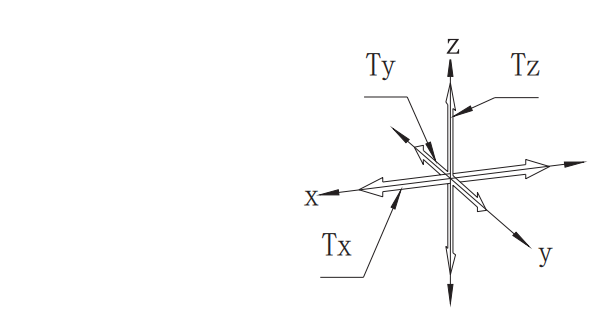

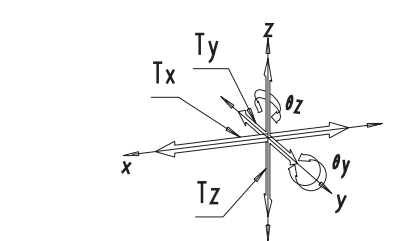

● Tx: 13mm Ty: 13mm Tz: 6mm
● Sensitivity: ＜1µm
● Straightness of X,Y,Z: ＜3µm

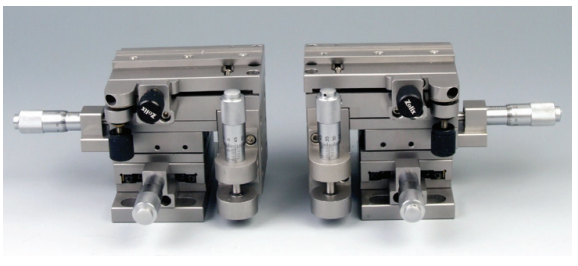

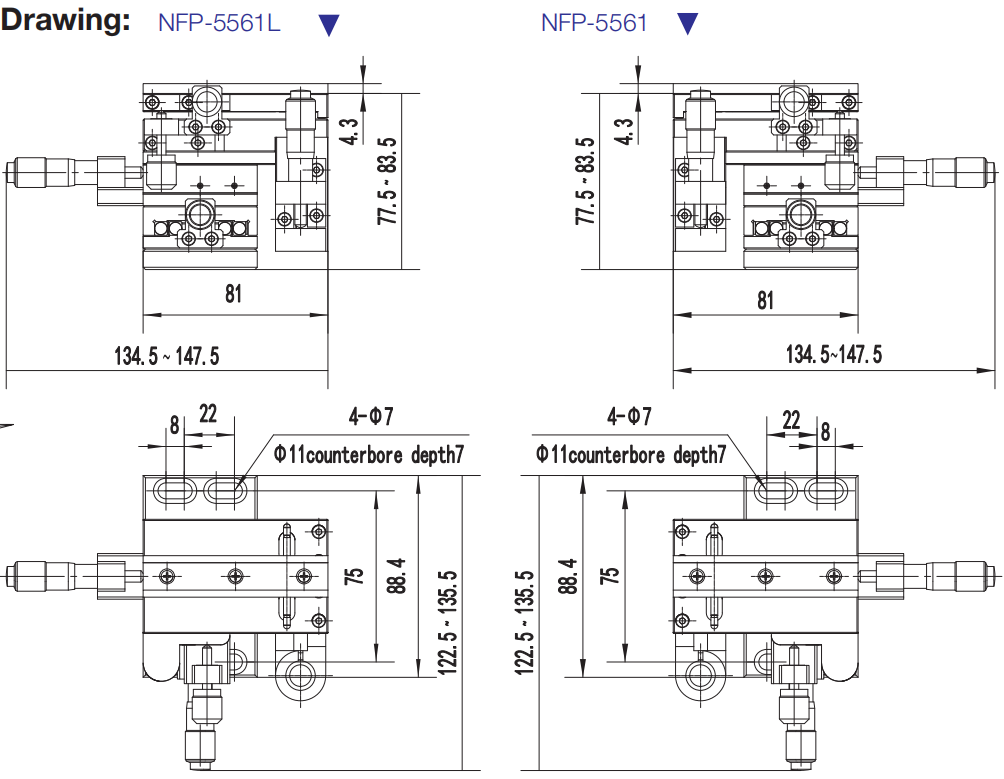

NFP-5561(L) High Precision Fiber Alignment Stage



Specification:
● Tx: 13mm
● Ty: 13mm
● Tz: 6mm
● θy: -2°～4°
● θz: -4°～4°
● Sensitivity: ＜1µm
● Straightnessof X,Y,Z axis: ＜3µm

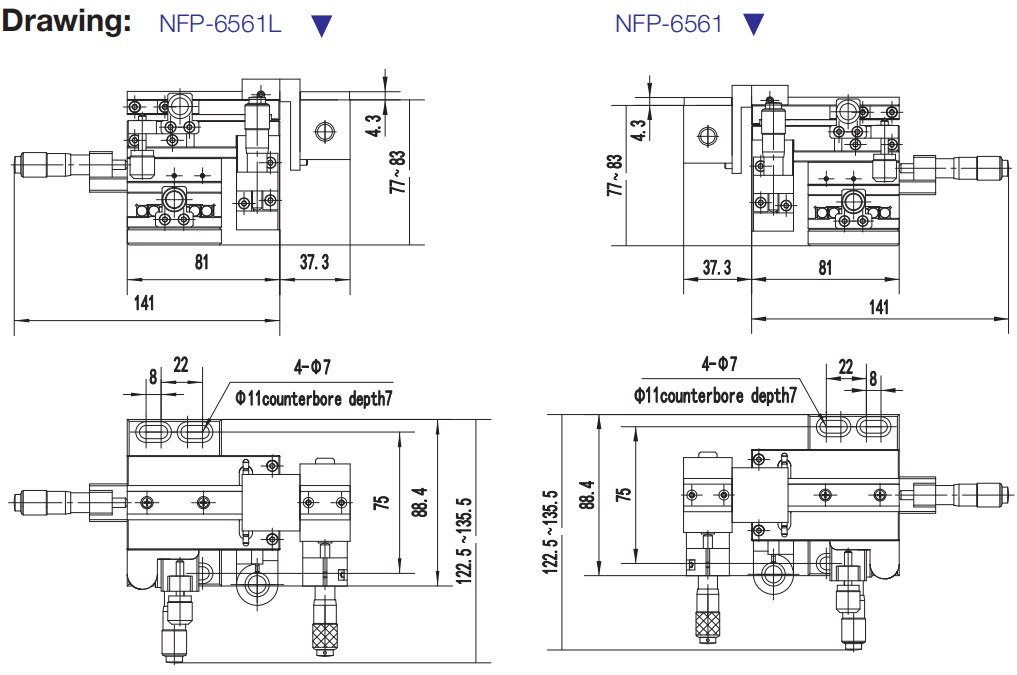

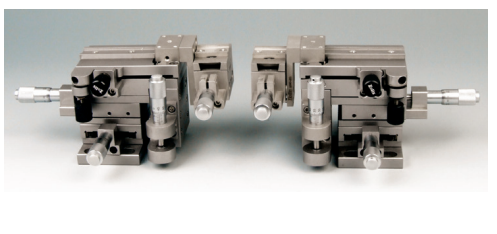

NFP-6561(L) High Precision Fiber Alignment Stage



Specification:
● Tx: 13mm
● Ty: 13mm
● Tz: 6mm
● θx: -10°～10°
● θy: -2°～4°
● θz: -4°～4°
● Sensitivity: ＜1µm
● Straightnessof X,Y,Z axis: ＜3µm
