KSAV1010/2030-ZF

Ultra-High Precision Motorized Vertical Stages

Inquiry
Download
Details
Model: KSAV
Ultra-High Precision Motorized Vertical Stages


KSAV1010/2030-ZF is new product, wedge vertical stage with.high-resolution, so many advantages: high-stability, high-load and capacity in vertical position,self-locking.applicatin filed: high postion precision,high load capacity,limited space and so on
Characteristic
Cross ball screw rail,precion ground ensure resolution, straightness,high load capacity, limited space
◆small travel improve resolution

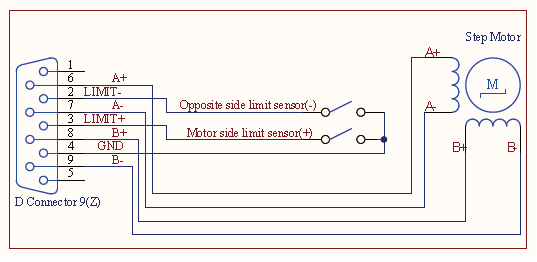

◆stepper motor and DB9 interface, choose controller flexibility
◆switches ensure safe when operate
◆ planning other specification and size
Diagram




Model KSAV1010-ZFKSAV2030-ZF
Price(USD)5632300
Travel (mm)1030
Screw Pitch (mm)11
Resolution of 8 sub-division(μm)0.230.4
Max Speed (mm/sec)66.5
Repeatability ((μm)<5<5
Stepper Motor (angle)42(1.8°)57(1.8°)
Current (A)1.72.4
Load Capacity (kg)1020
