Omni-iSpecT

High Performance Raman Spectrometer

Combining volume phase holographic (VPH) grating, wavelength optimized optics and deep-cooled CCD camera, Zolix is proud to present stateof-the-art Omni-iSpecT Raman spectrograph. It solves two essential problems concerned with Raman spectroscopy, speed and sensitivity. VPH spectrograph allows you to have faster acquisition and better S/N ratio, it is ideal for low light Raman applications such as remote detection, ultra fast Raman mapping etc, its lens-based design delivers minimum distortion at focal plane and ensures best image quality, which gives you high resolution and large spectral range simultaneously, also perfect image quality is ideal for multi-channel applications without cross-talking.
The Omni-iSpecT's rugged and compact design make an ideal module for in-the-field and industrial applications; It is still suitable for academic research with research-grade performance; The Omni-iSpecT also provides the SDK file for secondary development.


Inquiry
Download
Details
Application:

● Low pressure gas detection

● Confocal Raman spectroscopy

● Process control

● In-vivo or in-vitro medical diagnosis

● In-the-field and industrial applications etc.

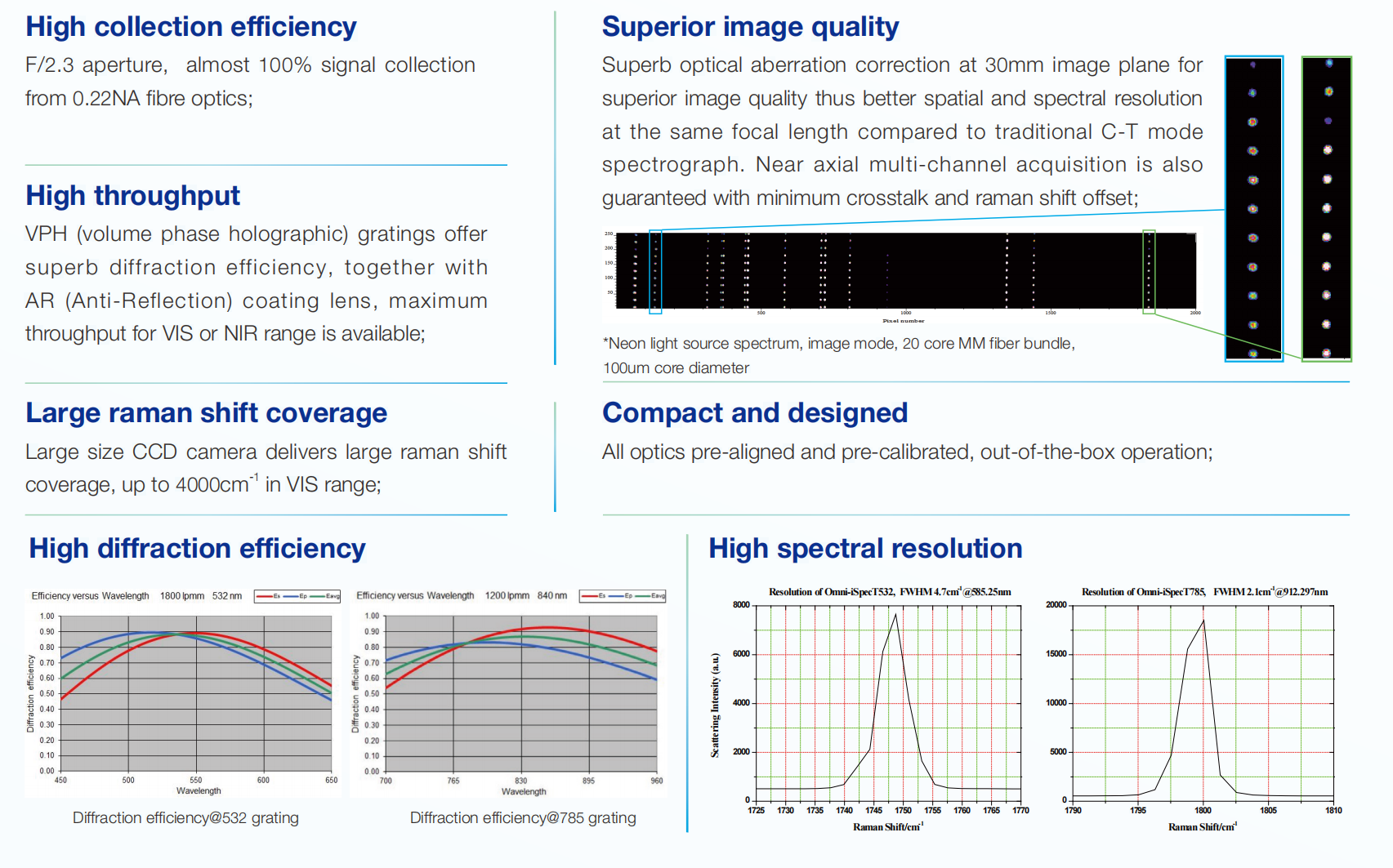

Key Features


Applications

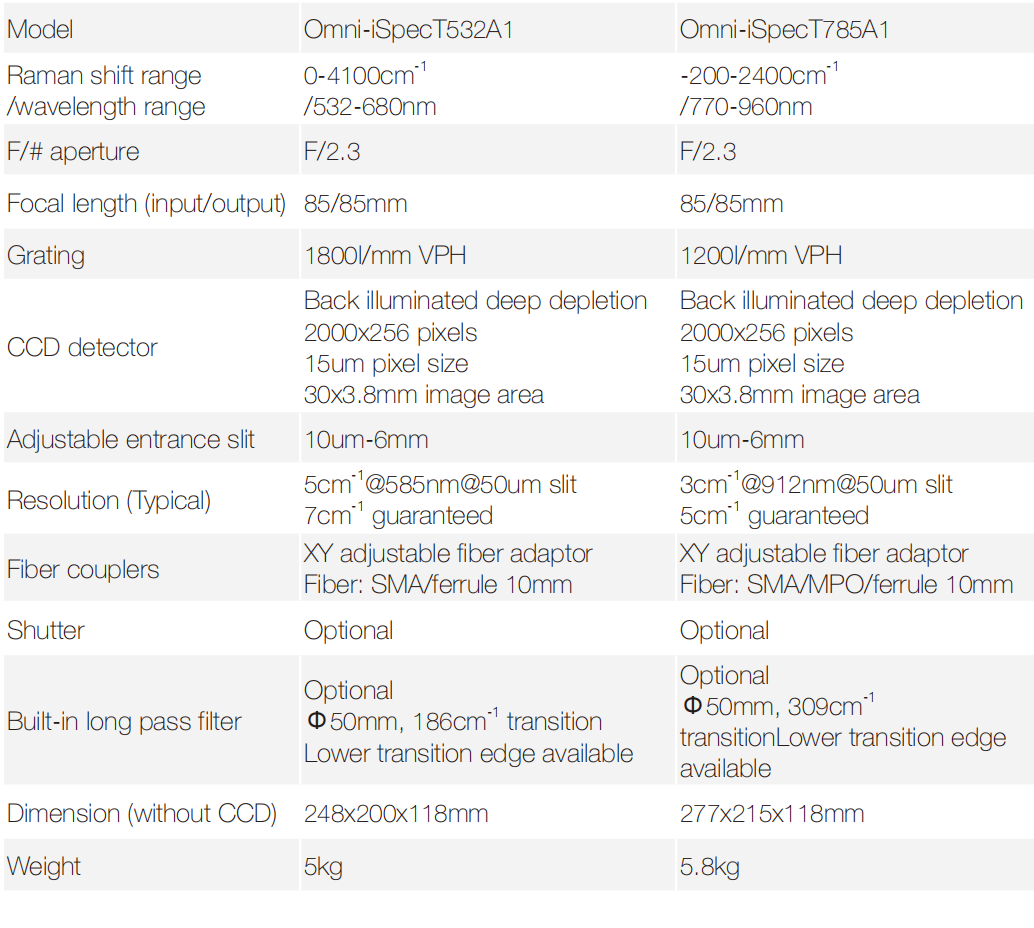

Specification



Packing list

● 1x Spectrograph base unit with XY adjustable universal fiber adaptor and manual entrance slit.

● 1x CCD detector with power supply and USB2.0 cable


Option

● Shutter

● 2" 532nm long pass edge filter (OD=6)

● 2" 785nm long pass edge filter (OD=6)


Operating & Storage Conditions

● Operating Temperature: 10℃ to 40℃ ambient

● Relative Humidity: < 80% (non-condensing)

● Ingress Protection: IP20

● Storage Temperature: -20℃ to 70℃


Power Requirements

● PS-12: 110 - 240 Vac, 50 - 60 Hz


OEM PSU recommendation:

● +12V, ± 5%, 5A maximum

● Regulation 11.4V minimum, ~ 12.0V typical, ~ 12.6V maximum

● Ripple & Noise: 200 mV maximum

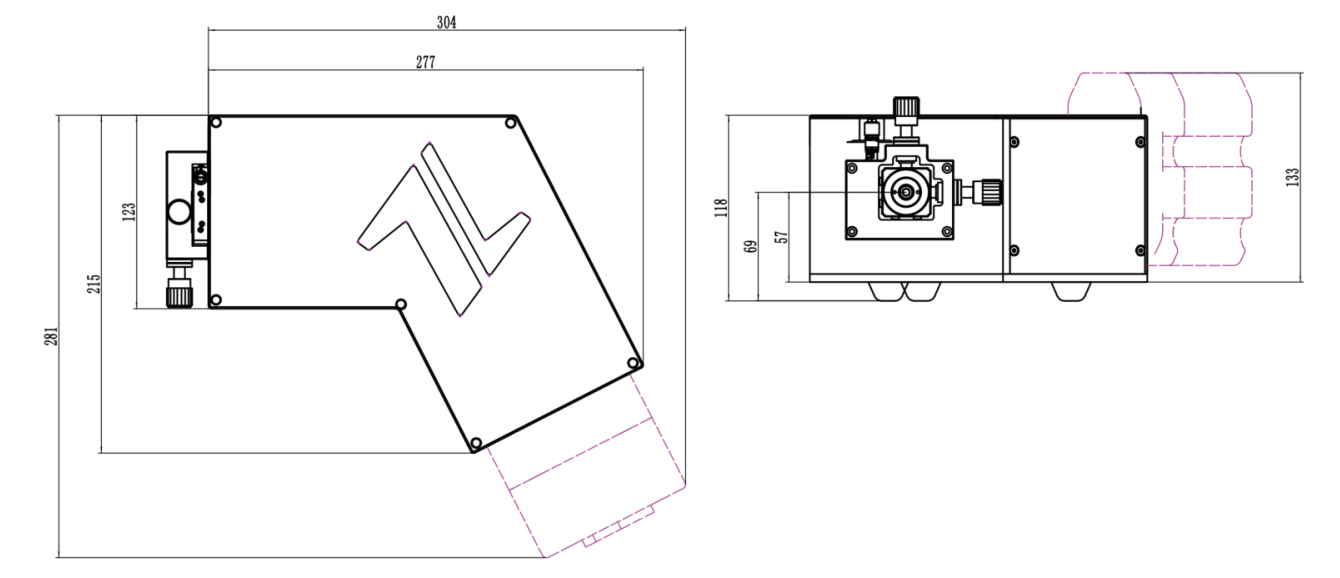

Dimension

Omni-iSpecT532A1

Omni-iSpecT785A1

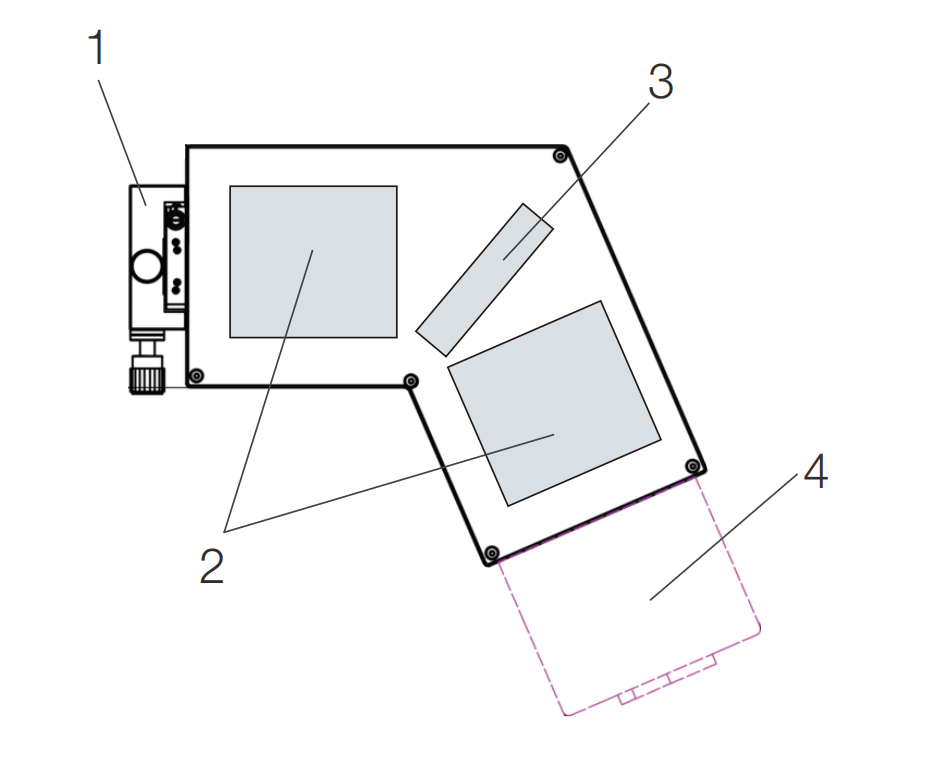

Configuration

1、Fiber input port
2、AR coating lens
3、VPH grating
4、deep-cooled CCD camera
