TSAXXX-B(F)

Stepper Motor,Linear Stage,Large Load

Inquiry
Download
Details
Model:TSAXXX-B(F)
Stepper Motor,Linear Stage,Large Load


Standard products has adopted ball screw,precision products has adopted grinding screw ;Slide has adopted linear bearing;Elastic couplings adopts high-quality imported products ,ensure the machine quality .The design of limited swtiches and zero switch,standard interface are convenient for signal’s output. The handwheel in the back of motors,can achieve manual adjustment. Standard hole is convenient for combined-dimensional ;Additionally , can reload servo- motor ,assemble grating,install un-dust cover ;Application for high load and high-stability fileds ,extensively used in industry.



 Related Products

SC300 Controller

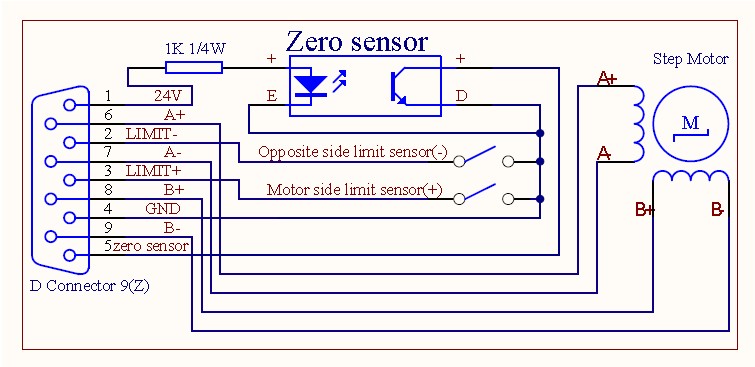

Diagram


ModelTSA50-BTSA100-BTSA150-BTSA200-B(F)TSA300-B(F)TSA400-B(F)TSA500-B(F)TSA600-B(F)TSA800-B(F)TSA1000-B(F)
Price(USD)650750883967/10501050/11331217/13001567190026333300
Travel (mm)501001502003004005006008001000
Screw Pitch(mm)45
Resolution1.252.53.125
Max speed204050
Repeatablity<5
Stepper motor42(0.9°)42(1.8°)57(1.8°)
Current (A)1.72.4
Load capacity(kg)3050
