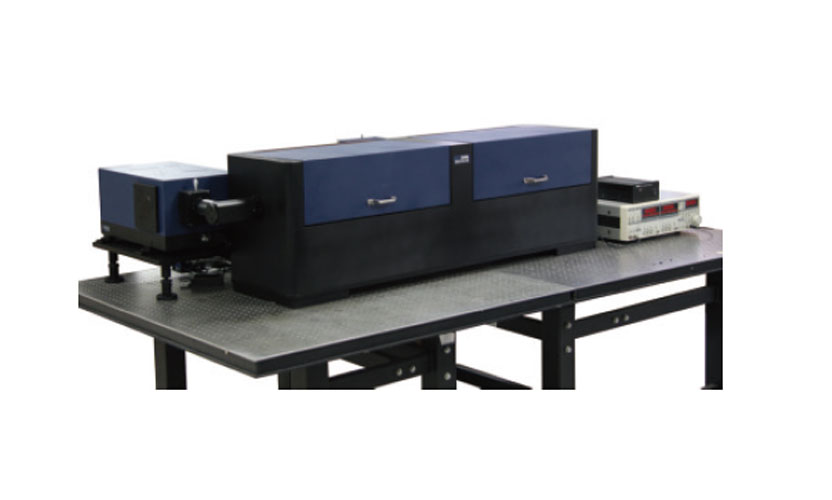

Optical lens spectral transmittance detection system

The transmittance of this system is >10%
Lens aperture: Φ8～Φ150mm(Through an aperture change selection),the max wavelength 600mm
Triple gratingmonochromator(300mm focal length),automatical scan and grating switch freely.
Spectral Range: 380～2500nm
Motized stage, Adjusting the optical system deterinated to the appropriate location along the optical axis
Tungsten light source with chopper and High stable constant-current power supply
the accuracy of transmittance: ±2%
Spectroscopy software and filter wheel software, Output data collection and analysis and calculation software, measurement parameters are automatically saved and can be printed directly
