StopLine® Thin-film Single Notch Filters

RazorEdge filters are available in three grades determined by the "Transition Width," which is theguaranteed maximum difference between the laser wavelength (at which the attenuation exceeds optical density 6) and the filter edge-wavelength at the 50% transmission point, and the typical "Edge Steepness," which is the actual steepness of a filter measured from the OD 6 point to the 50% transmission point.

StopLine Filter Type	Passband Range (nm)	Laser-line Blocking
"E grade"	350 nm to 1600 nm	> 6 OD
"U grade"	0.75 x λ_Laser to λ_Laser / 0.75	> 6 OD
"S grade"	0.75 x λ_Laser to λ_Laser / 0.75	> 4 OD

StopLine single-notch filters are available from stock for the following laser wavelengths. Each filter is housed in a labeled, black-anodized aluminum ring with a diameter of 25 mm and a thickness of 3.5 mm.

Laser Wavelength		Passband Range	Laser Line Blocking	Typical 50% Notch Bandwidth	Part Number
405 nm	E Grade	330 - 1600 nm	> 6 OD	9 nm	NF03-405E-25
405 nm	S Grade	330 - 540 nm	> 4 OD	12 nm	NF02-405S-25
441.6 nm	U Grade	331.2 - 588.8 nm	> 6 OD	11 nm	NF01-442U-25
441.6 nm	S Grade	331.2 - 588.8 nm	> 4 OD	14 nm	NF02-442S-25
488 nm	E Grade	350 - 1600 nm	> 6 OD	14 nm	NF03-488E-25
488 nm	S Grade	366.0 - 650.7 nm	> 4 OD	16.9 nm	NF02-488S-25
514.5 nm	U Grade	385.9 - 686 nm	> 6 OD	16 nm	NF01-514U-25
526.5 nm	U Grade	394.9 - 702 nm	> 6 OD	17 nm	NF01-526U-25

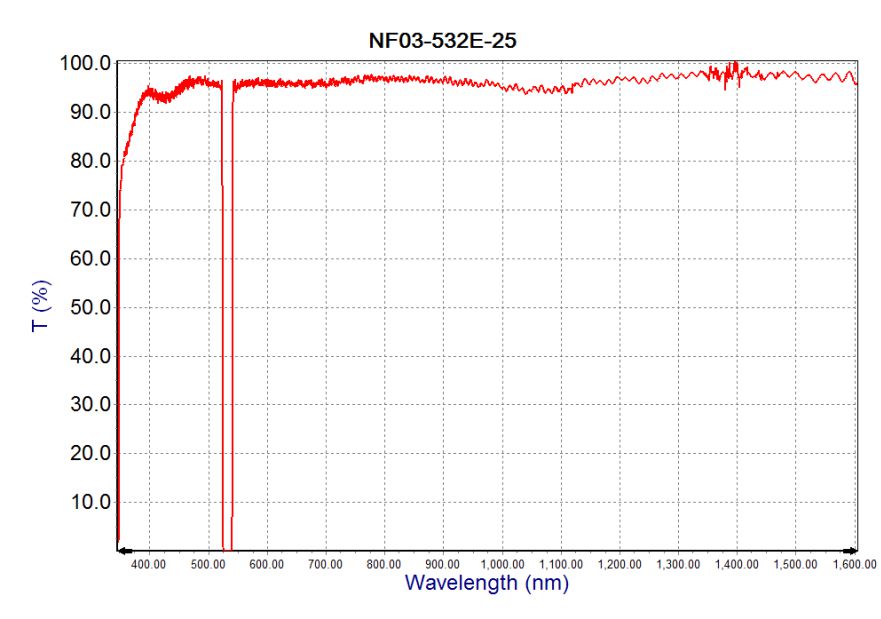

532 nm	E Grade	350 - 1600 nm	> 6 OD	17 nm	NF03-532E-25
532 nm	U Grade	399 - 709.3 nm	> 6 OD	17 nm	NF01-532U-25
561.4 nm	E Grade	350 - 1600 nm	> 6 OD	19 nm	NF03-561E-25
568.2 nm	U Grade	426.2 - 757.6 nm	> 6 OD	20 nm	NF01-568U-25
594.1 nm	U Grade	445.6 - 792.1 nm	> 6 OD	22 nm	NF01-594U-25
594.1 nm	S Grade	445.6 - 792.1 nm	> 4 OD	25 nm	NF02-594S-25
632.8 nm	E Grade	350 - 1600 nm	> 6 OD	25 nm	NF03-633E-25
658 nm	E Grade	350 - 1600 nm	> 6 OD	27 nm	NF03-658E-25
785 nm	E Grade	350 - 1600 nm	> 6 OD	39 nm	NF03-785E-25
785 nm	U Grade	588.8 - 1046.7 nm	> 6 OD	39 nm	NF01-785U-25
808 nm	E Grade	350 - 1600 nm	> 6 OD	41 nm	NF03-808E-25
808 nm	U Grade	606 - 1077.3 nm	> 6 OD	41 nm	NF01-808U-25
830 nm	U Grade	622.5 - 1106.7 nm	> 6 OD	44 nm	NF01-830U-2
