Calibration light source

Inquiry

Download

Details&Spec

Details

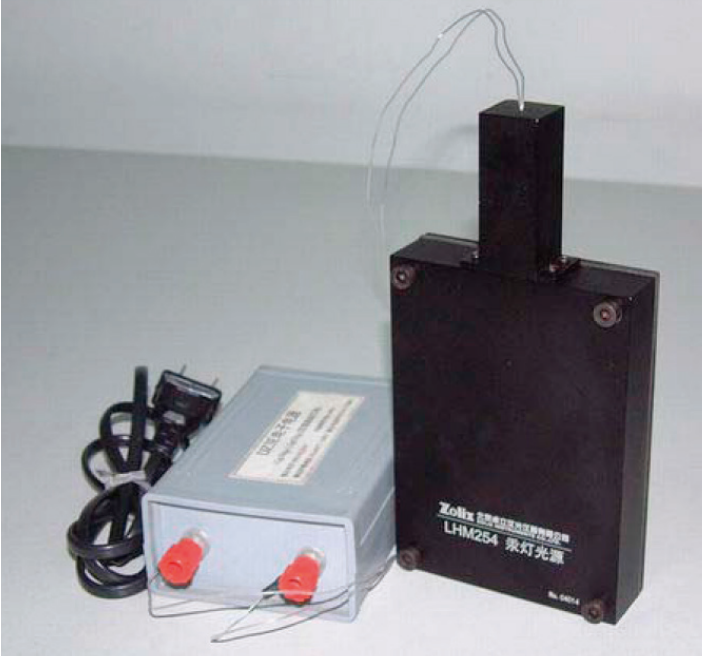

LHM 254 Mercury Lamp

LHM 254 can provide characteristic lines of 253.65, 312.57, 313.15, 313.18, 365.02, 404.66, 435.84, 546.07, 576.96, 579.07nm,which can be used for spectrometer wavelength calibration.

Specification

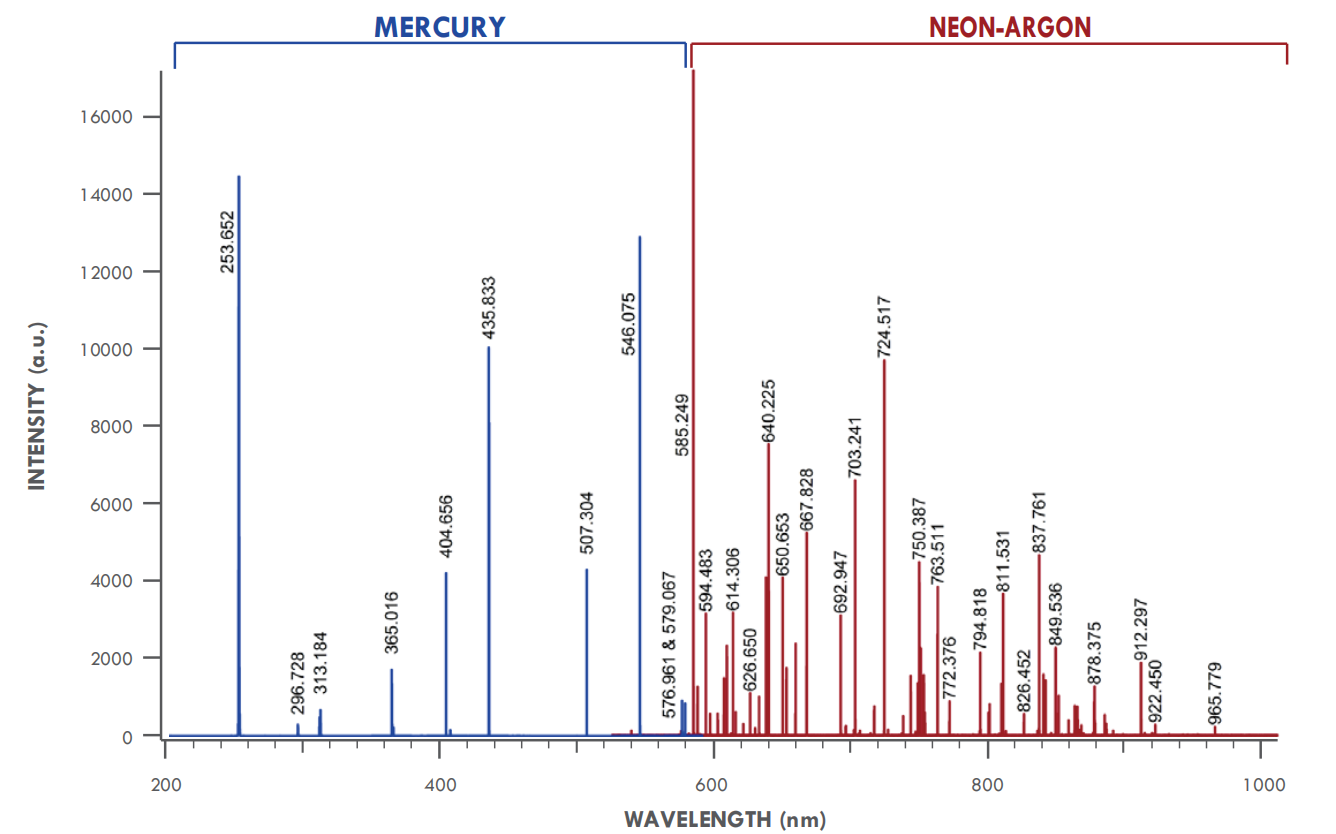

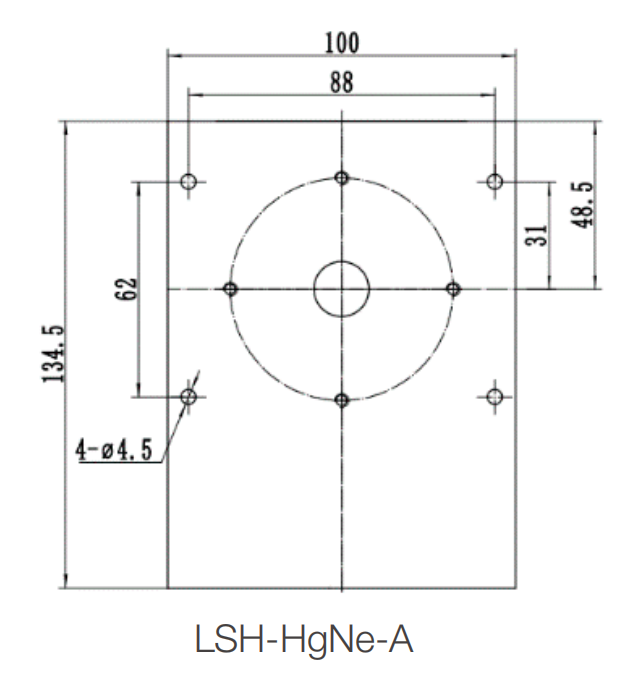

LSH-HgNe-A/B Mercury Neon Lamp

LSH-HgNe-A/B Mercury Neon lamp is combination of mercury lamp and neon lamp, it can provide characteristic lines from UV to NIR, mainly used for spectrometer wavelength calibration.

A is for motorized slit

B is for manual slit

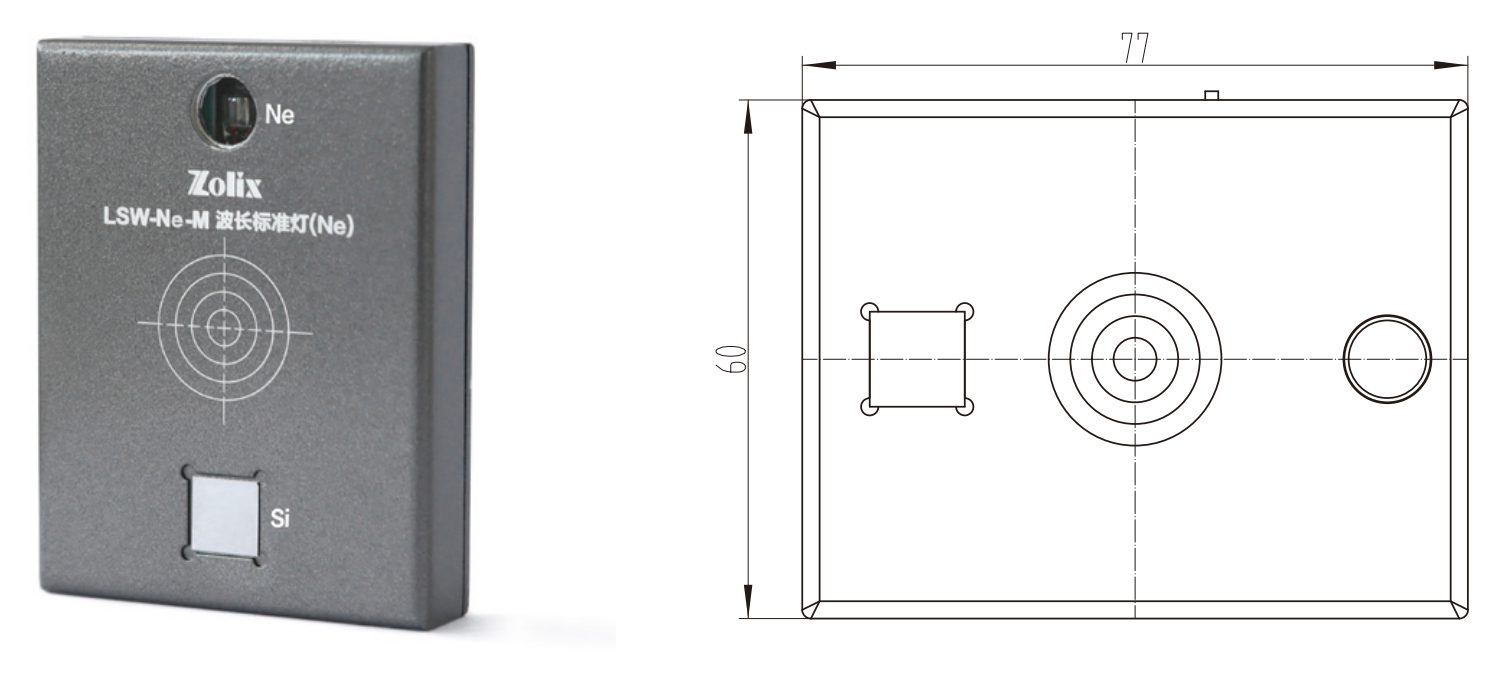

LSW-Ne-M Neon Lamp

LSW-Ne-M is a compact and portable calibration light source, it features crystalline silicon wafer and the cross target can be used for spectrometer calibration as well as the Raman spectrometer calibration.

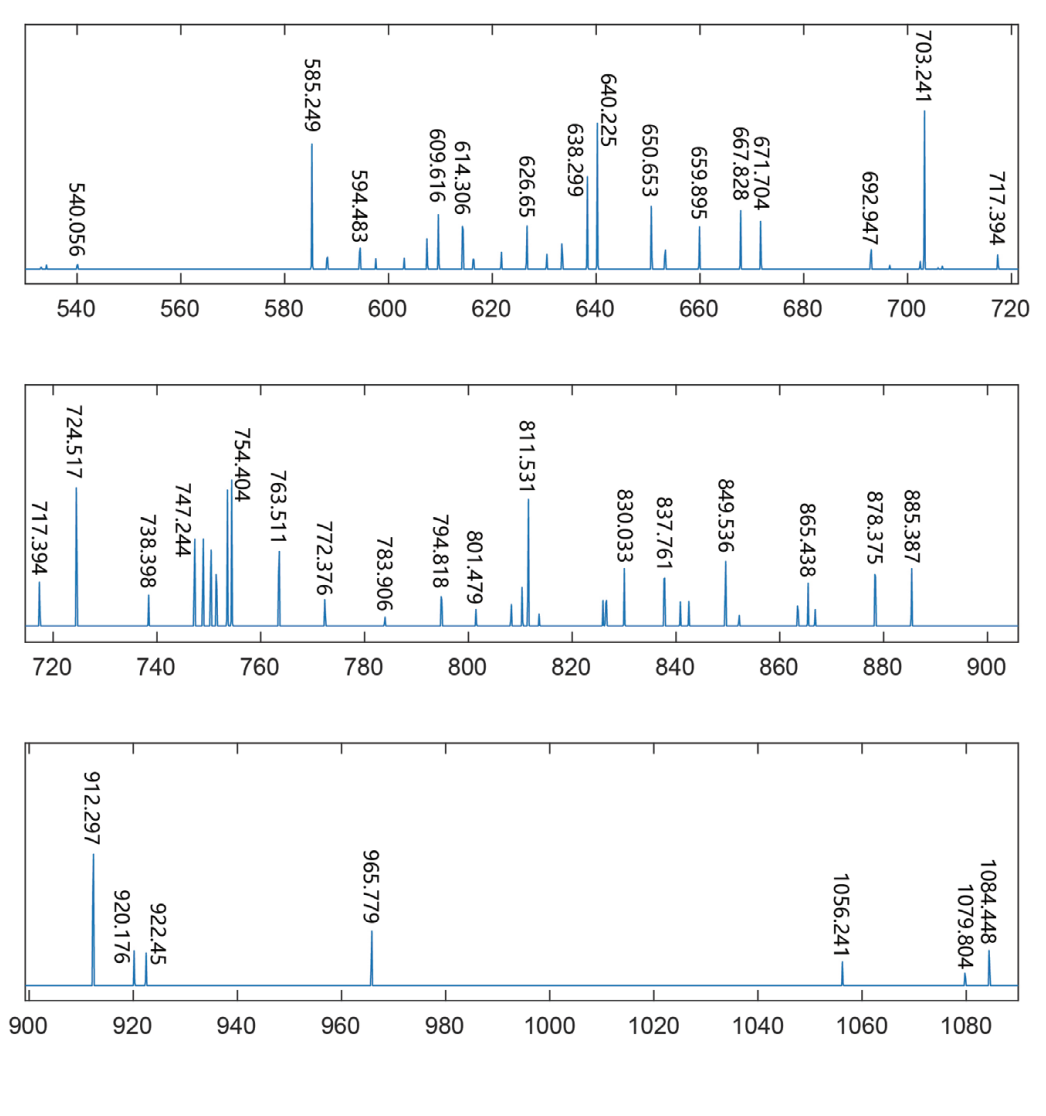

The Neon Lamp Spectrum
