Ambient Temperature · LS25x.Lab.R Piezo-Linear Stage

Details

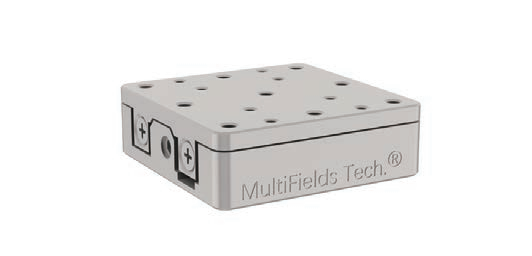

Piezoelectric · Linear Motion— LS25x.Lab.R (closed-loop)

Piezoelectric motion@RT solutions — “.Lab Series“ Well packaged piezoelectric motion unit

Piezo-Linear Stage with compact shape and no compromise on power performance; while guaranteeing a premium price space.

Product Features

• Ultra quiet motion, 20 kHz drive frequency

• 25 × 25 mm × 8 mmExtremely compact form factor

• closed-loop control · Position sensing supports resistance type(.R)

• Economy - Spatial Sensing Resolution(.R) 150 nm

• Minimum pace better than 15 nm

• Multi-axis stacking mount adapters available

• Controller compatible with rotator, goniometer

• Supports non-magnetic (.NM), high vacuum (.HV) and ultra-high vacuum (.UHV) options

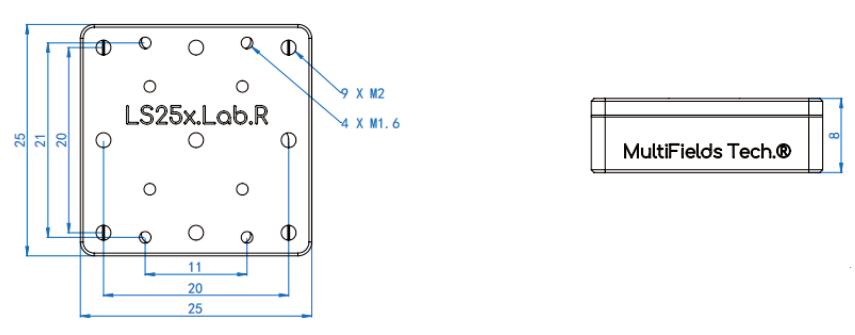

2D - Dimensional drawing

LS25x.Lab.R Piezo-Linear Stage — Specification

Optional Versions ⇨	Default	.NM	.HV	.UHV
	.NM, Absolutely non-magnetic version； .HV, High vacuum version; .UHV, Ultra high vacuum version；
1 Bottom size*Height	25 × 25 mm × 8 mm
2 Main Material	Stainless Steel	Pure Ti	Stainless Steel	Stainless Steel
3 Cables & Connectors	Standard shielded cable D-Sub 9 Connector		kapton Enameled Wire， PEEK-2mm Pin

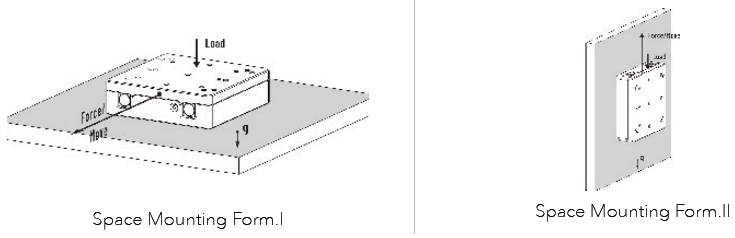

Motion parameters - space recommended installation form I. (The following properties are measured in the recommended installation form)
4 Travel	8 mm
5 MAX. Velocity	~ 20 mm/s
6 Min. Step	< 15 nm
7 Drive Frequency	Max. 20 kHz （Super quiet movement）
Maximum horizontal 8 force	2 N
9 Staying Force	5 N
10 Full-travel pitch/yaw	0.3 mrad / 0.2 mrad
Motion parameters - space recommended installation form II. (The following properties are measured in the recommended installation form)
11 Maximum vertical load	2 N
12 Staying Force	5 N
Sensing accuracy
13 Position Sensing Type	- Resistance type sensing（ .R ）
14 Position sensing range	8 mm
15 Position sensing resolution	~ 150 nm
