Low Temperature · Piezoelectric Rotator35 Motion Stage

Details

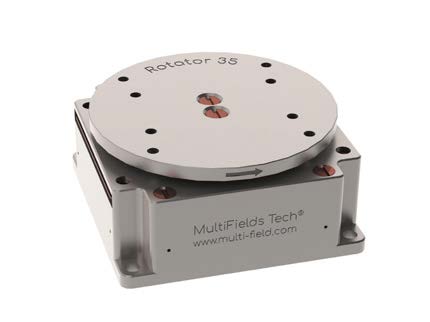

Rotary stage with closed-loop control

Features

• Compact design, dimensions: 35*35*16.5 mm

• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK

• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field

• High loads & high torque: 500 g & 2.5 Ncm

• Travel range: 360 ° endless

• Closed-loop control with position sensing up to 10 m° resolution

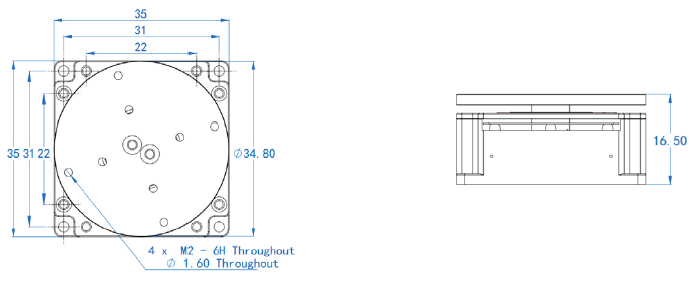

Dimension drawing

Rotator35, Specification

*All data below is measured with 50 ohm wires. Though there is no requirement on wires’ conductance, we recommend resistance below 50 ohm.

	Optional Versions ⇨	.HV (default)	.ULT	.UHV	.ULT.UHV
		.HV version, default product; .ULT version, used at He3 or dilution cryogenics systems .UHV version, compatible with 2E-11 mbar
1 Footprint × hight		35 × 35 mm × 16.5 mm
2 Weight		45 g
Working Environment &
3 Work environment		Temperature range: 1.4 ~ 400 K Vacuum: 2e-7 mbar Max. Magnetic field: 18 Tesla
4 Option1 - 30 mK			✓		✓
5 Option2 - 2e-11 mbar				✓	✓
Materials
7 Mainbody		Pure Ti	BeCu	Pure Ti	BeCu
8 Wires		Phosphor Bronze Twisted Paired Wires, 20cm
9 Pin materials		Polyster (glass fiber filled), BeCu		Peek, BeCu
10 Pins number		7 pins
Motion
11 Travel range		360 ° endless
12 Max. Velocity @300 K		~ 10 °/s
13 Drive voltage		Max. 200 V
14 Max. Load		500 g
15 Dynamic torque		2.5 Ncm
Sensor (closed loop)
16 Position encoder		Resistive Sensor
17 Encoder range		320 °
18 Sensor resolution		10 m°
19 Repeatibility		~ 50 m°
