Low Temperature · Piezoelectric Rotator25 Motion Stage

Details

Low Temperature · Piezoelectric Rotator25 Motion Stage
Rotary stage with closed-loop control

Features

• Compact design, dimensions: 25*25*16.5 mm

• Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK

• Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field

• High loads & high torque: 250 g & 1.5 Ncm

• Travel range: 360 ° endless

• Closed-loop control with position sensing up to 10 m° resolution

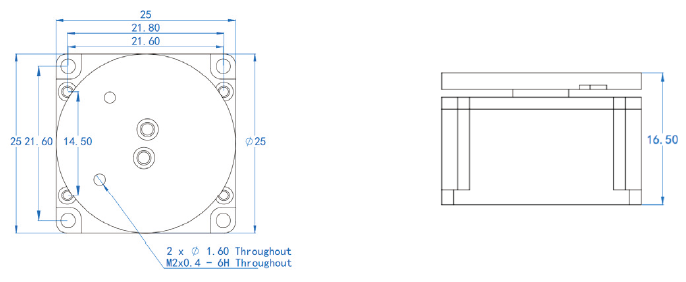

Dimension drawing

Rotator25, Specification

*All data below is measured with 50 ohm wires. Though there is no requirement on wires’ conductance, we recommend resistance below 50 ohm.

Optional Versions ⇨	.HV (default)	.ULT	.UHV	.ULT.UHV
	.HV version, default product; .ULT version, used at He3 or dilution cryogenics systems .UHV version, compatible with 2E-11 mbar
1 Footprint × hight	25 × 25 mm × 16.5 mm
2 Weight	24 g
Working Environment &
3 Work environment	Temperature range: 1.4 ~ 400 K Vacuum: 2e-7 mbar Max. Magnetic field: 18 Tesla
4 Option1 - 30 mK		✓		✓
5 Option2 - 2e-11 mbar			✓	✓
Materials
7 Mainbody	Pure Ti	BeCu	Pure Ti	BeCu
8 Wires	Phosphor Bronze Twisted Paired Wires, 20cm
9 Pin materials	Polyster (glass fiber filled), BeCu		Peek, BeCu
10 Pins number	7 pins
Motion
11 Travel range	360 ° endless
12 Max. Velocity @300 K	~ 3 °/s
13 Drive voltage	Max. 200 V
14 Max. Load	250 g
15 Dynamic torque	1.5 Ncm
Sensor (closed loop)
16 Position encoder	Resistive Sensor
17 Encoder range	320 °
18 Sensor resolution	10 m°
19 Repeatibility	~ 50 m°
