NASF series Spatial Filter

Inquiry

Details&Spec

Details

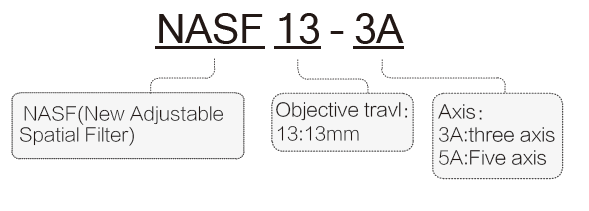

Naming rules：

Selection Table：

Model	NASF13-3A	NASF13-5A
Angle(°)	/	±3
Objective Range(mm)	13
XY Axis Adjustment Range(mm)	±1
Center Height(mm)	35	47
Objective	X4、X10、X20、X40、X60、X100
Pin-hole Diaphragm	NASF13-GD
Lock-mechanism	Yes
Mounting Hole	3xM6
Weight(g)	270	380
