OMLH-Z series Optical Mount for Cylindrical Lens

OMLH-Z series optical mount for cylindrical lens especially suitable for holding cylindrical lens or other square lenses. With new four-pull spring design.It can adjust in two rotate directions, pitch and yaw in two dimensions. One side is guided by double stainless steel column, the other side is open type, clamping wide range of size. Both upper and lower parts have teflon pad, which can effectively protect
the lens . Two-dimensional adjustments were made with M6 x 0.25 fine thread.with high sensitivity.


Inquiry
Download
Details
Selection Table:

Model

OMLH-Z

OMLH-Z10

Optics Height(mm)

≤ 54

≤ 65

Optics Thickness (mm)

1~6

1~10

Adjustment Angle Range (°)

±3

One Round of Screw Drive vs Angle Adjusted (°)

≈0.28

Main Body Material and Treatment

aluminium alloy, surface treated by black anodic oxidation.

Fixed Plate Thickness(mm)

17

Number of Pulling Spring

4

Mounting Hole

M6，sink holeφ8

Net Weight (g)

175

216

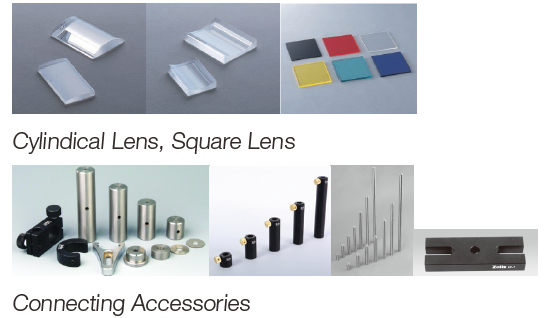

Related Products:
