PHLM series Cylinder Laser Tube Kinematic Mount

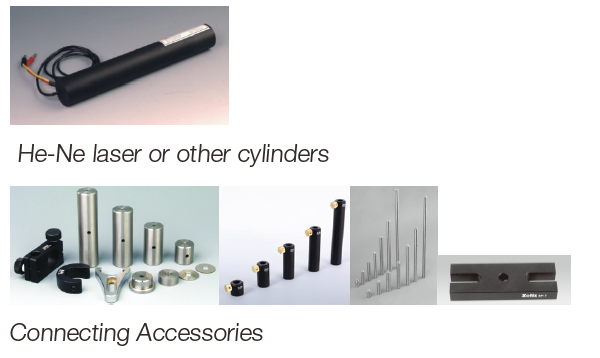

Cylinder laser tube kinematic mount design for the HeNe laser tube or other lasers with cylinder tube, for more simple in tuning and stable of holding.


Inquiry
Download
Details
Features:
• High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
• Advanced structure：
① The thumb wheel drive hold the laser tube position in three points
② Teflon attachment poings, keep the laser tube surface save.
• Universal mounting : Mount the cylinder 5-60mm Dia.
Selection Table:

Model

PHLM-1

PHLM-2

PHLM-3

Optic Size (mm)

φ5~φ60

φ25~φ45

φ25~φ45

Adjustment Angle Range (°)

±5

/

±3

One Round of Screw Drive vs Angle Adjusted (°)

Tilt(°)

≈0.08

/

≈0.23



Tilt(°)

≈0.36

/

≈0.24

Main Body Material and Treatment

aluminium alloy, surface treated by black anodic oxidation.

Overall Height(mm)

150

62

72

Mounting Hole

sink holeφ11

Net Weight (g)

780

450

650
