Txx series motorized supporting frame systems

The typical configurations of Txx series motorized supporting frame systems include dual-X, dual-Z axis or the combination of them.
Inquiry
Download
Details
Description:
The typical configurations of Txx series motorized supporting frame systems include dual-X, dual-Z axis or the combination of them. It is Dual-side driven mechanism to guarantee motion stability and uniformity of driving forces during operations.
Main characteristics:
•Multi optional selections of driving devices, such as servo motors, linear-driven motors
•Default set of tow chain is standard to offer a nicer appearance and easy installation of cables
•Modular design for easy maintenance
•Customer-designed proposals are acceptable

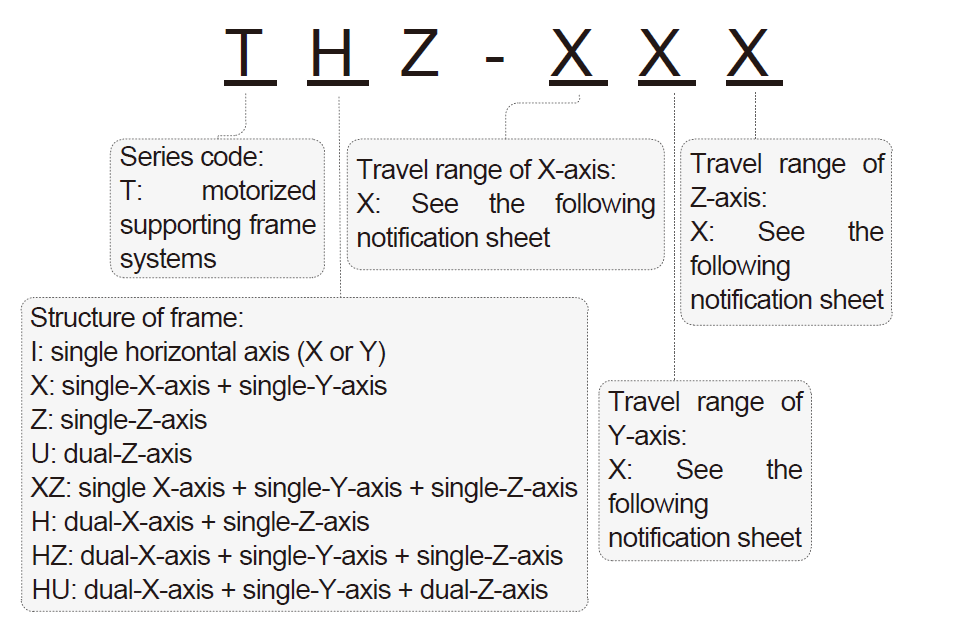

Naming rules:
Notification sheet:

Travel

range(mm)

50

100

150

200

300

400

500

600

800

1000

1200

Code:

A

1

B

2

3

4

5

6

8

E

F
There is NO configuration of combination of Y-axis and Z-axis.
