Motorized XY series all-in-one two-axis stages

They are best application scenarios for motorized XY series all-in-one two-axis stages in which workpieces treated in production lines with high precise and high repetition rate scanning.

Inquiry

Download

Product Manuals

Details&Spec

Details

Description:

They are best application scenarios for motorized XY series all-in-one two-axis stages in which workpieces treated in production lines with high precise and high repetition rate scanning. XY series products are designed according to all-in-one principle and employ cross-roller guides and ball screws to construct transmission mechanism to ensure high orthogonality and motion accuracy. A distinct of this series is that selected large-size rectangular light-through hole at the center of stages. Optional glass cover or aluminum-alloy c cover could help operators to realize scanning or alignment with transmission mode or reflection mode separately.
Main characteristics:

•Using ball screws to meet the requirement of high precise and high repetition operations

•Better motion accuracy is guaranteed by employing crossroller guides

•Rectangular light-through hole is provided, with optional glass or aluminum-alloy covers

•Two-phase stepping motors are standard. Five-phase stepping or servo motors are optional
Naming rules:

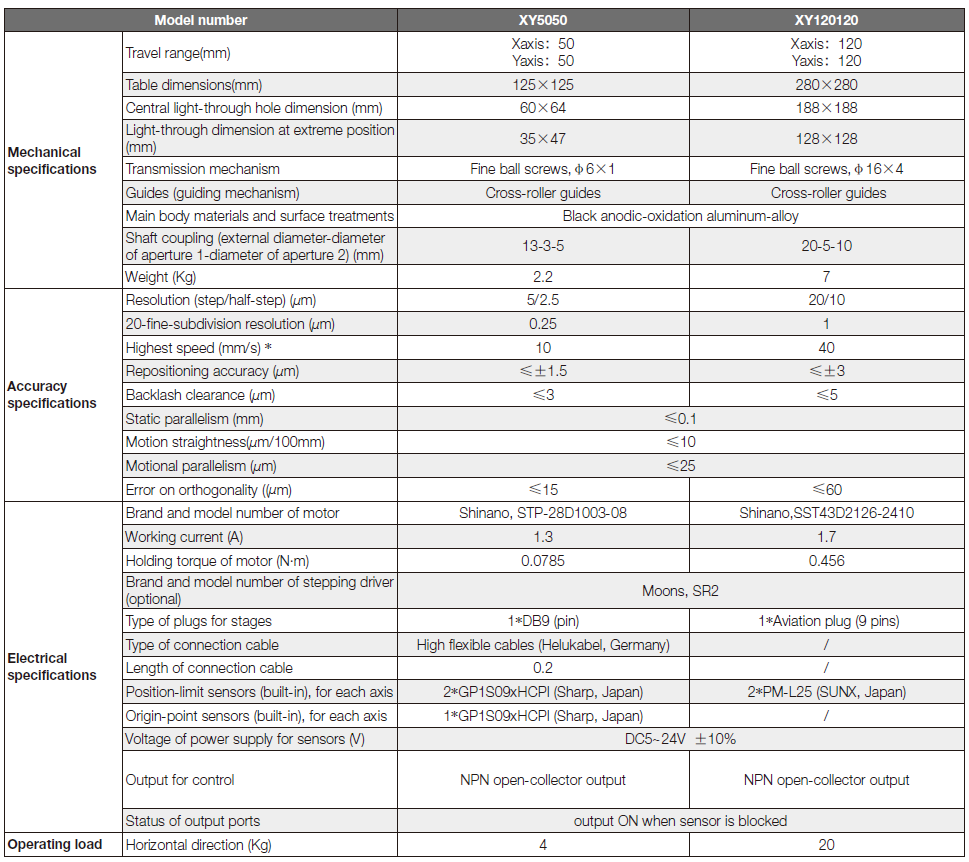

Selection chart:

* Highest speed is measured with the conditions of zero-load and motors being worked at 600rpm
