PHUC series Swiveling Post Clamp

PHUC series swiveling post clamp can couple different diameter post in any different angle . Two post can adjust the relative angle in 360° range ,then using the thumb screw lock it.


Inquiry
Download
Details
Selection Table:

Model

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

Net Weight(Kg)

PHUC-1

60

30

12

12

33

0.12

PHUC-2

77

36

20

12

44

0.15

PHUC-3

77

36

20

20

41

0.15

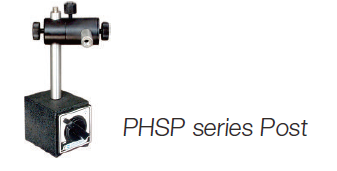

Related Products:

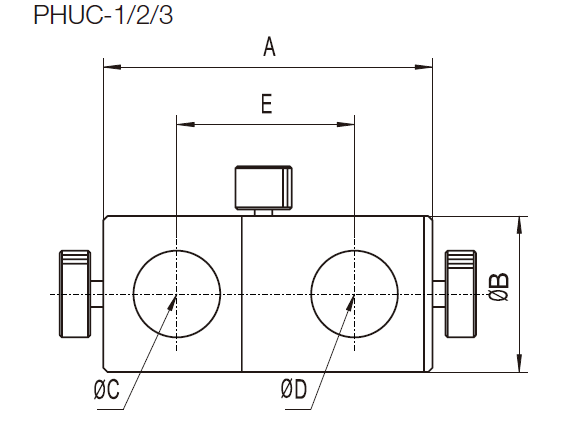

Dimensions:
