PEB Imperial Standard Base Plate

Inquiry
Download
Details
Brief Introduction:
PEB75: Size 75mm×50mm , with counterbored slot at the longer direction.slot width is 7mm, the standard metric or imperial screws can fix the base on the optical table.
PEB75: Size 75mm×50mm , with counterbored slot at both longer andshorter direction. slot width is 7mm, the standard metric or imperial screws can fix the base on the optical table.
Features:
• Aluminium alloy, surface treated by black anodic oxidation.
• Mounting hole is 3/4″ -10 adapt to PEH series metric standard post

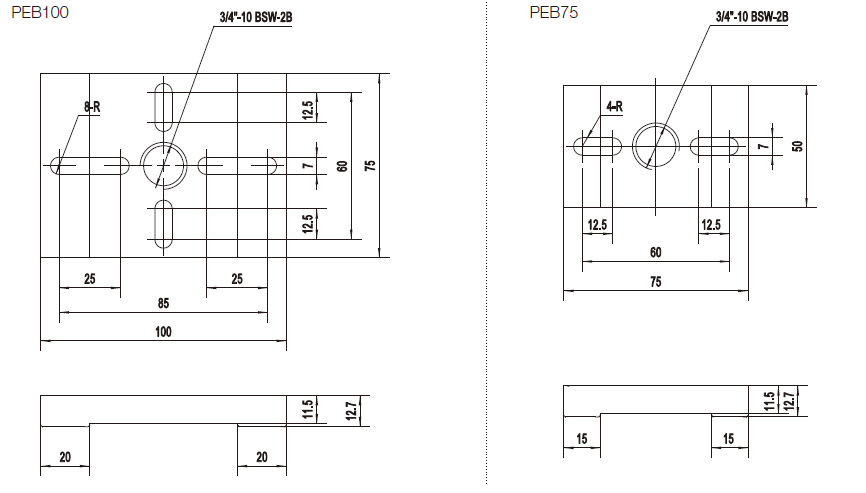

Dimensions:
