PEP series Imperial Standard Post

Inquiry

Download

Details&Spec

Details

Brief Introduction:

PEP series imperial standard post standard with 1/4" -20 male thread one end and 1/4" -20 UNC-2B on the other end. Different length options of 50mm,76mm and 102mm "-B series" with 8-32 UNC-2B female thread one end and 1/4" -20 UNC-2B on the other end. Different length options of 50mm,76mm and 102mm Holder provide lockable, non-rotating height adjustment. First , put the post inside the post holder,coarsely set the height and using the thumb screw fix the post, then using the adjustable ring precisely adjust for the non-rotating height. Then lock the fine tuning position.
Material:

Stainless Steel

Features:

Post Diameter 12.7mm(1/2");has an φ3mm through hole, post can be

fixed by wrench

Selection Table:

Model	PEP12.7-50(B)	PEP12.7-76(B)	PEP12.7-102(B)
Length L(mm)	50	76	102
Through Hole Height H(mm)	20	30	35

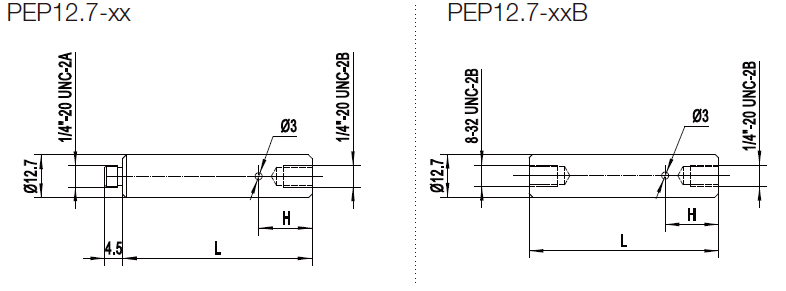

Dimensions:
