AKG series High Precision Manual Goniometer

Inquiry

Product Manuals

Details&Spec

Details

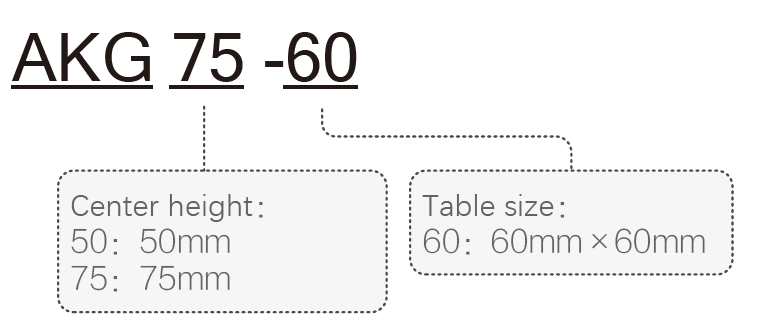

Naming Rules

Selection Table

Model	AKG50-60	AKG75-60
Travel(°)	±10	±8
Center Height(mm)	50	75
Table Size(mm)	60×60
Thickness(mm)	25
Transmission Ratio	252:1	352:1
Weight(Kg)	0.36
Rotation center runout(µm)	≤15
The rotation angle by micrometer rotation one circle (°)	≈1.43	≈1.02
Load(Kg)	≤5
