APFP series Standard Precision Fiber Optic Alignment Stages

Inquiry
Download
Details

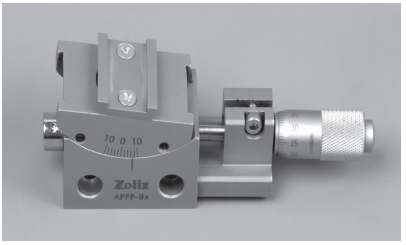

APFP-θx Precision Fiber Alignment Stage, θ3° Micrometer


Specification:
● θx: ±7°

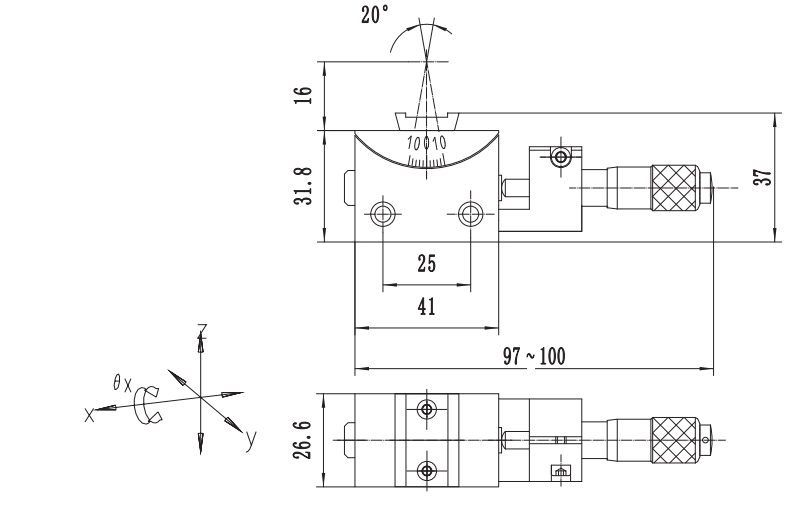

Drawing:

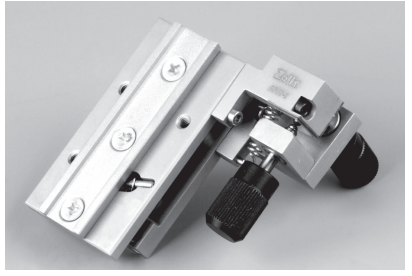

APFP-T(L) Precision Fiber Alignment Stage, θy,θz:±3° Screws
Specification:
● θy: ±3°
● θz: ±3°

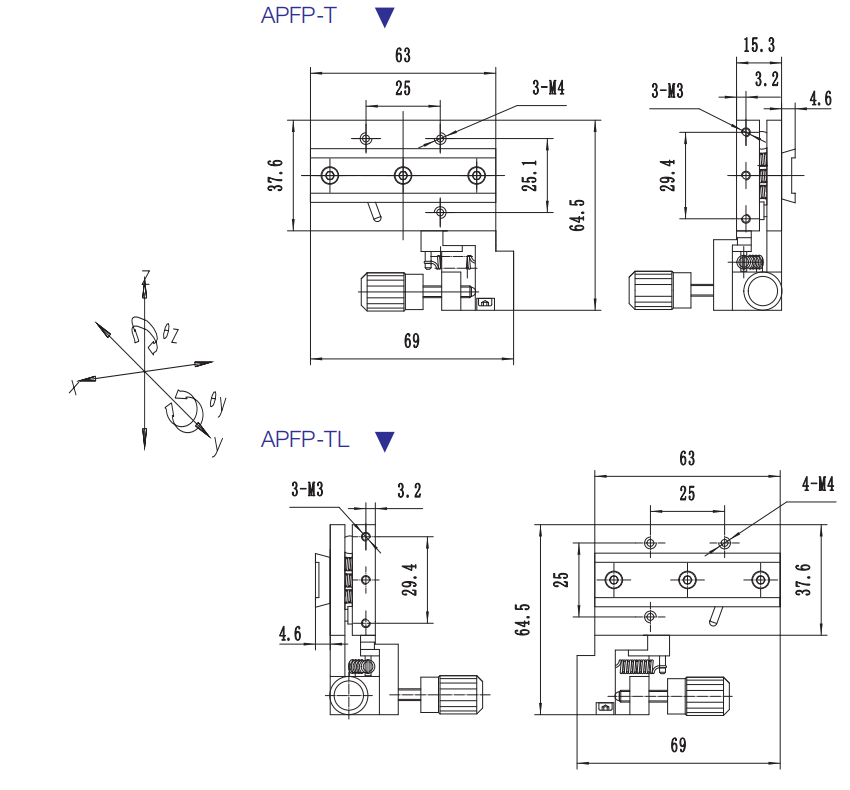

Drawing:

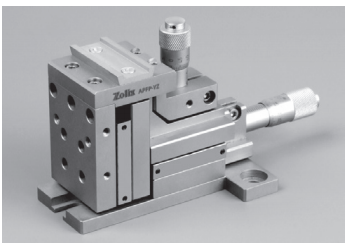

APFP-YZ Precision Fiber Alignment Stage

Specification:
● Ty:12mm Tz:6mm
● Sensitivity: ＜2µm

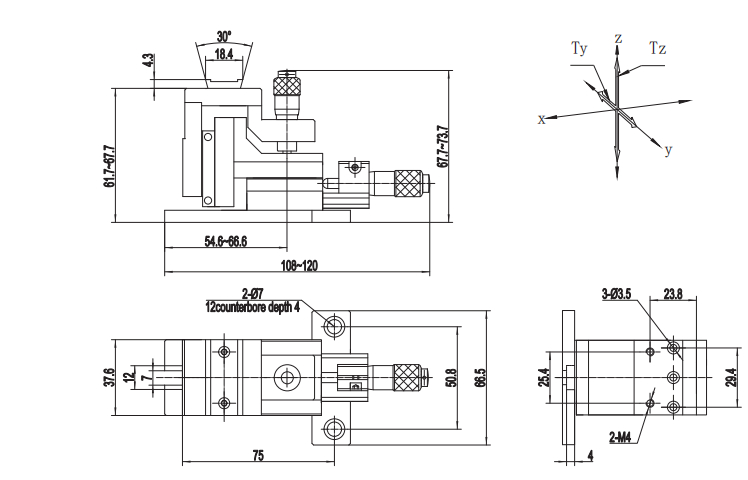

Drawing:



APFP-XYZ Precision Fiber Alignment Stage, 13mm XY, 6mm Z Micrometers



APFP-XYZT(L) Precision Fiber Alignment Stage



Specification:
● θy: ±3° θz: ±3°
● Tx: 12mm
● Ty: 12mm
● Tz: 6mm
● Sensitivity: ＜2µm

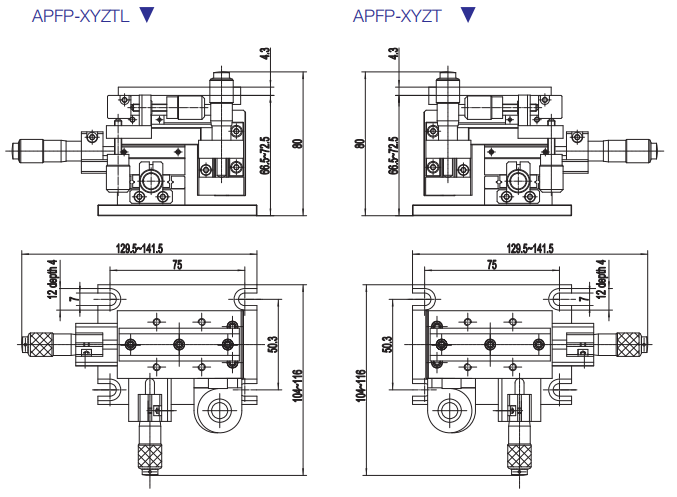

Drawing:

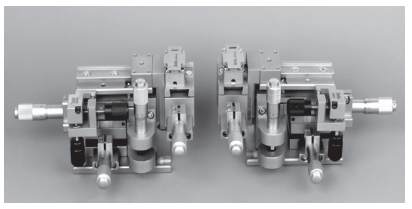

APFP-XYZTθ(L) Precision Fiber Alignment Stage



Specification:
● θx: ±7° θy: ±3° θz: ±3°
● Tx: 12mm； Ty: 12mm; Tz:6mm

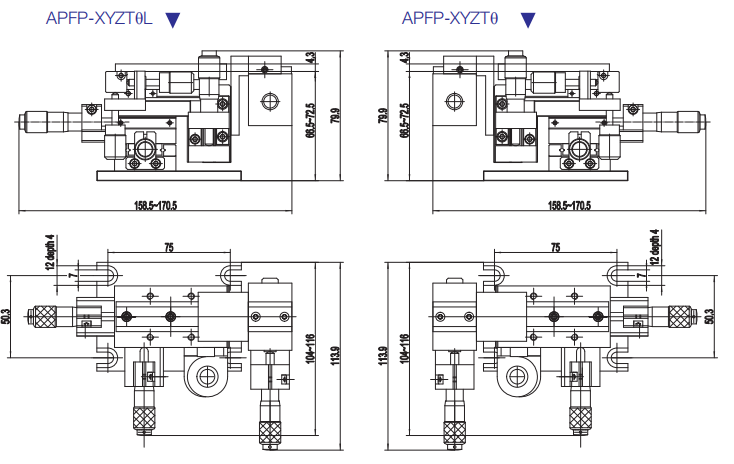

Drawing:



FP-XYZT Precision Fiber Alignment Stage



Specification:
● Tx: 13mm
● Ty: 13mm
● Tz: 13mm
● θy: ±3°
● θz: ±3°

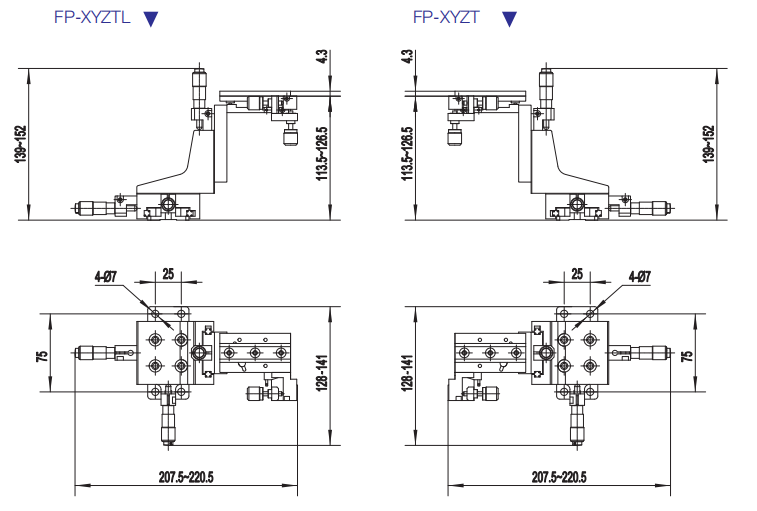

Drawing:
