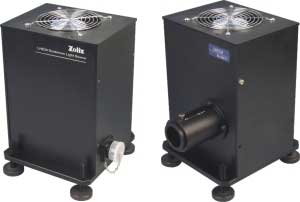

Deuterium Light Source

Deuterium Light Source




Deuterium Light Source is applicable for UV and has higher luminance than Tungsten-halogen Light Source under  300nm wavelength;

Characteristic

High intensity of ultraviolet radiation spectrum: 200-400nm
Optical axis height of LSH-D30: 134-154mm
Good stability Output light intensity, Lumen fluctuations: 0.5%
Long life timeos around 2000 hours
Output power of LSP-D30:50W
Current of LSP-D30: 0.3A
Current stability of LSP-D30: 0.05%/h
Volage of LSP-D30：24V DC


Model of 30W Deuterium Light Source

Model	Power of Bulb(W)	Current(mA)	Volage(V)	Light area(mm)	Trigger volage(V)	Average life time(hour)
LSB-D30	30	300	70-90	Φ1	>350 DC	2000
